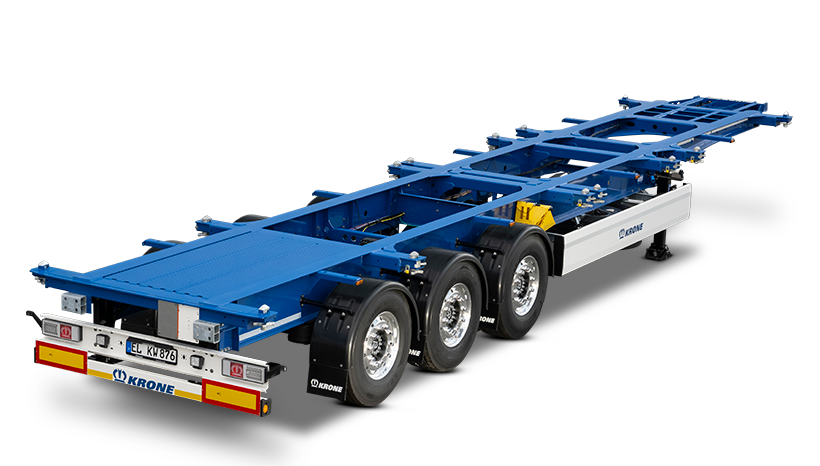

Box Liner SDC 27 eL40
The flat chassis for up to 40' containers
- Specialist for all containers for countries with a permissible overall height of over 4.2 m
- Extremely stable and robust
- Chequer plate platform at rear
- Rear lights installed in a protected location

The flat chassis carries containers up to 40' in length. The Box Liner SDC 27 eL40 makes it possible to transport containers in the sizes 1 x 40', 2 x 20', 1 x 20' in the middle (up to 30 to.) as well as 1 x 30' container flush with the rear.
Technical data
Type
SDC 27 eL40
Fifth-wheel load
16000 kg
Axle load
27000 kg
Permissible total weight
43000 kg
Approx. dead weight:
4900 kg
Approx. payload.
38100 kg
Wheelbase
1410 / 1,310 mm
Coupling height
1150 mm
Construction height, front
200 mm
Length of kingpin to rear edge of vehicle
11275 mm

Technical data
Type
SDC 27 eL40
Fifth-wheel load
16000 kg
Axle load
27000 kg
Permissible total weight
43000 kg
Approx. dead weight:
4900 kg
Approx. payload.
38100 kg
Wheelbase
1410 / 1,310 mm
Coupling height
1150 mm
Construction height, front
200 mm
Length of kingpin to rear edge of vehicle
11275 mm
Always a plus on equipment.
Simply inimitable

Box Liner eL40
The flat chassis carries containers up to 40' in length. The Box Liner SDC 27 eL40 makes it possible to transport containers in the sizes 1 x 40', 2 x 20', 1 x 20' in the middle (up to 30 to.) as well as 1 x 30' container flush with the rear.

Robust construction
Extremely resilient for rough everyday container use. The Box Liner is fitted with robust steel ram buffers at the rear. In case of damage, the lighting bracket and the underrun protection must be replaced separately.

Stable neck area
The neck area is very solid. The supply lines are mounted where they can be safely accessed above a collision angle.

Chequer plate platform
The chequer plate platform allows even 20' containers transported in the middle can be unloaded at the ramp.

Side collision protection
The side collision protection is robustly bolted to the frame and powder-coated in safety colour white.

Wheel chocks
The wheel chocks can be easily accessed and are mounted directly in front of the axles.
Accessories Box Liner

Accompanying documentation can optionally be transported in a protected manner in a document tube or in a document box (here mounted on the inside of the side collision protection).

Accompanying documentation can optionally be transported in a protected manner in a document tube or in a document box (here mounted on the inside of the side collision protection).

Regardless of whether it is a traction rear or a standard rear, a back-up spotlight can always be installed in a protected manner.

The traction rear and traction+ combination on the SDC 27 eL20 ensures an excellent fifth-wheel load. The 25% drive axle load required in cross-border traffic can be achieved up to a container weight of approx. 28 tonnes (depending on the tractor unit) This combination also ensures that the load distribution of the SDC 27 eLTU70 is well-balanced.

If equipped with a spare wheel holder, the side collision protection can also be supplied in a fold-up version.

Lift axles automatically respond load-dependently. This allows you to reduce your tyre wear and save fuel.

A variety of warning signs can be fitted to the rear of the vehicle.

A genset (optionally from Genmark, Carrier or Thermoking) makes it possible to transport refrigerated containers at controlled temperatures. The genset also features its own fuel tank, which ensures that the cold chain is not interrupted even during road transport.

A genset (optionally from Genmark, Carrier or Thermoking) makes it possible to transport refrigerated containers at controlled temperatures. The genset also features its own fuel tank, which ensures that the cold chain is not interrupted even during road transport.
