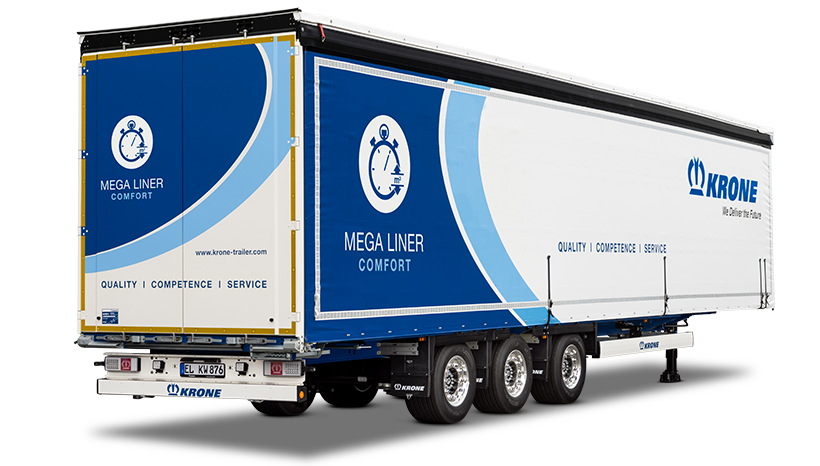

Mega Liner Comfort

SDP 27 eLG4-CV

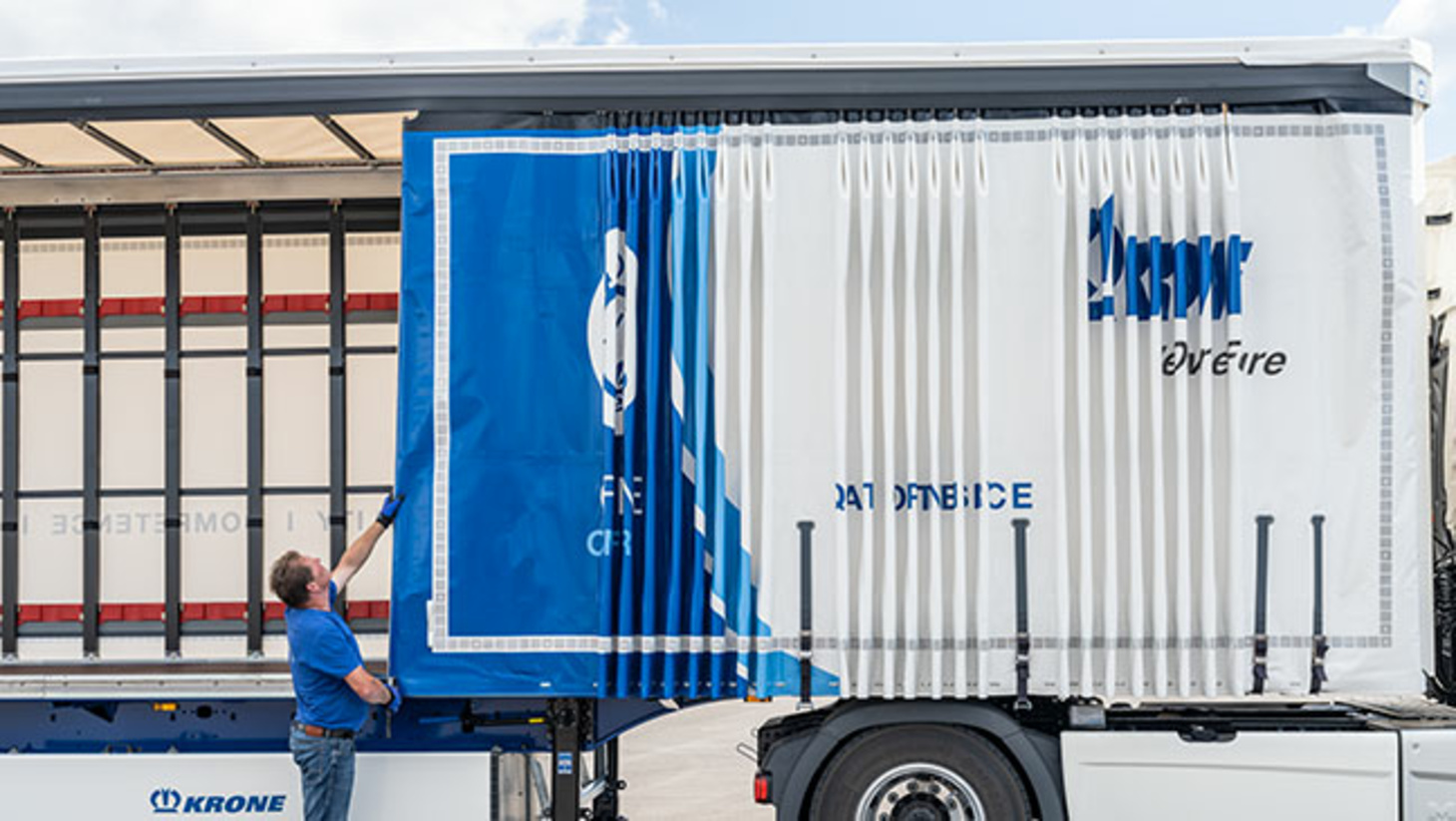

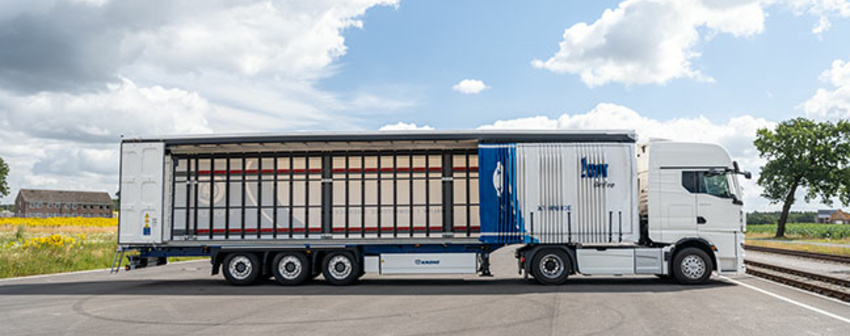

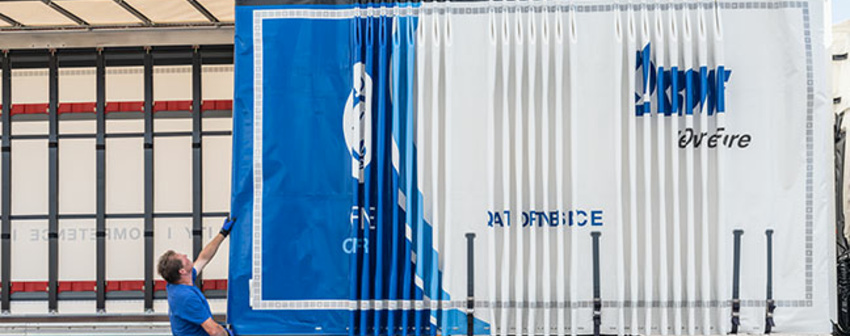

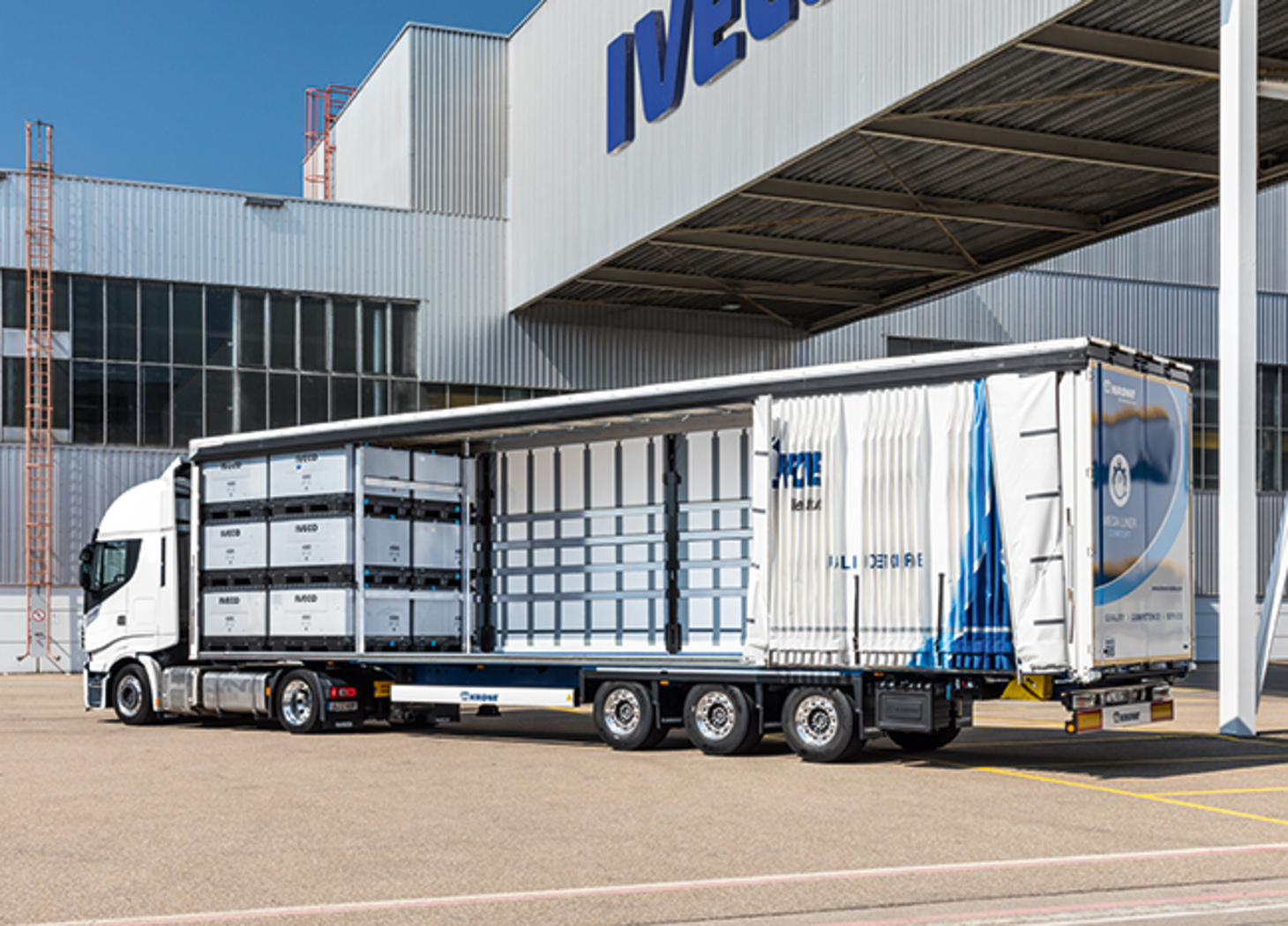

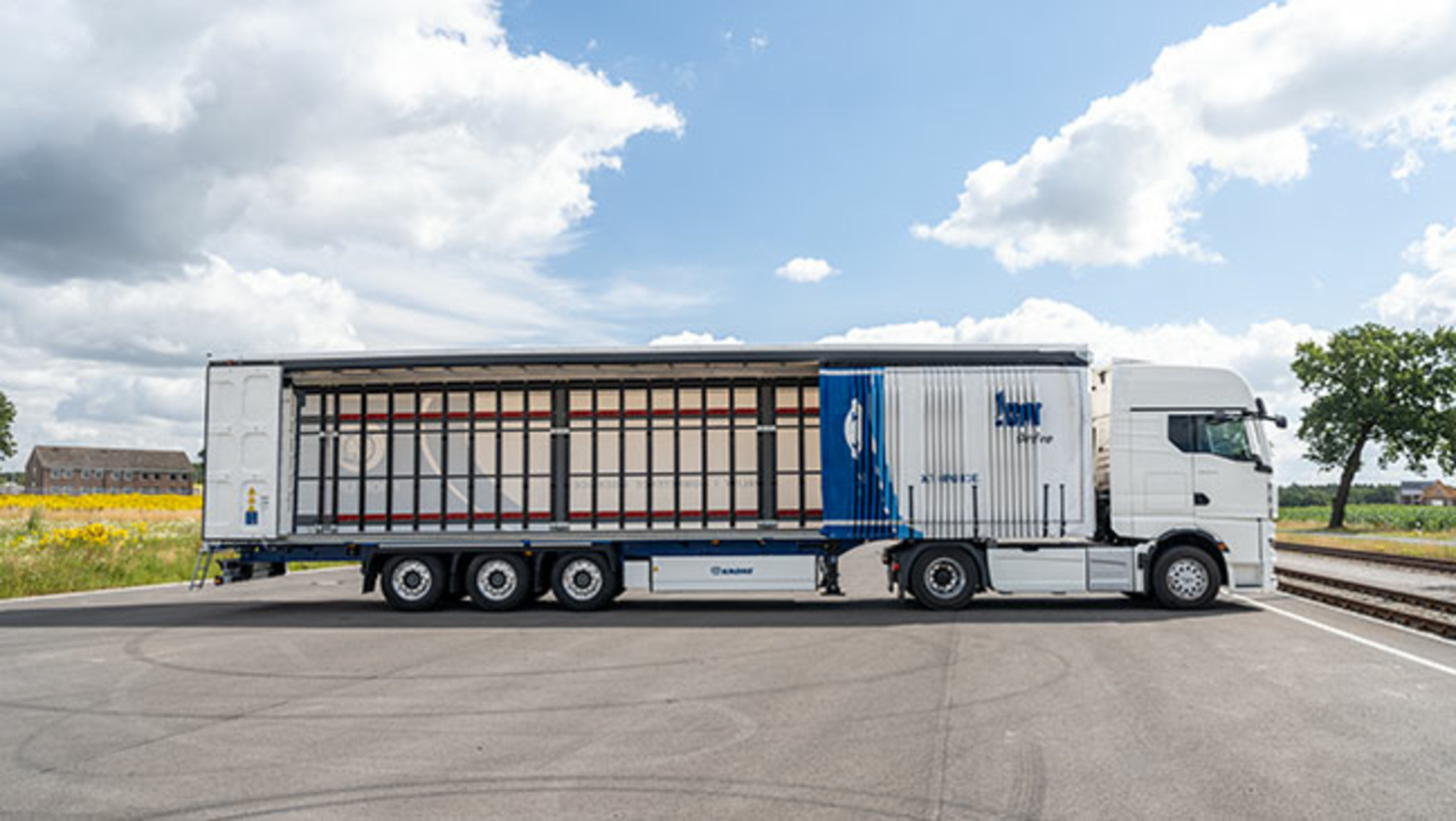

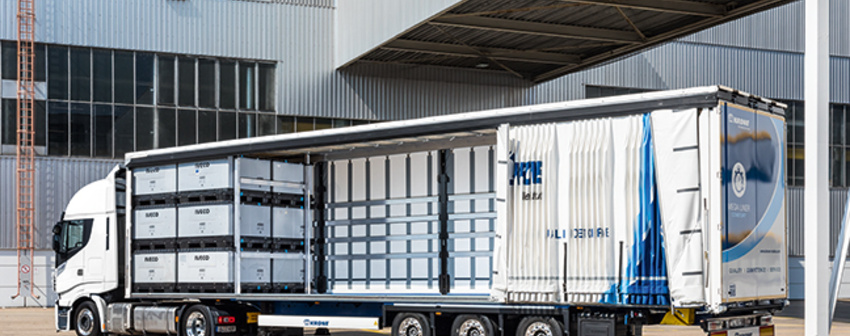

Open or closed in just 30 seconds: the rapid resetting tarpaulin with micro posts on the Mega Liner Comfort. Ergonomic and fast opening is also the hallmark of the central hydraulic lifting roof. This makes the Mega Liner Comfort a wild card not only for automotive loaders but also for beverage transport, replete with the relevant load securing certificates as standard.

[Translate to EN:]

Superior in any concern.

Advantages at a glance

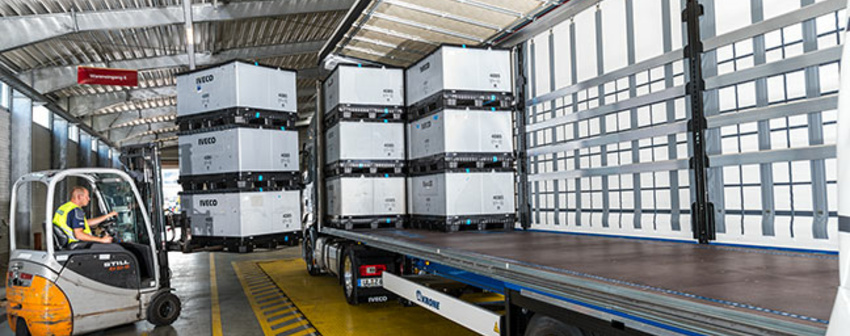

  • IDEAL FOR FAST LOADING AND UNLOADING
  • TIME SAVING OF 90 % DURING OPERATION
  • PERFECTED ERGONOMICS
  • COMFORT CURTAIN ON ONE OR BOTH SIDES
  • CERTIFICATES: DAIMLER 9.5 AND EN 12642 CODE XL

Always a plus on equipment.

Simply inimitable

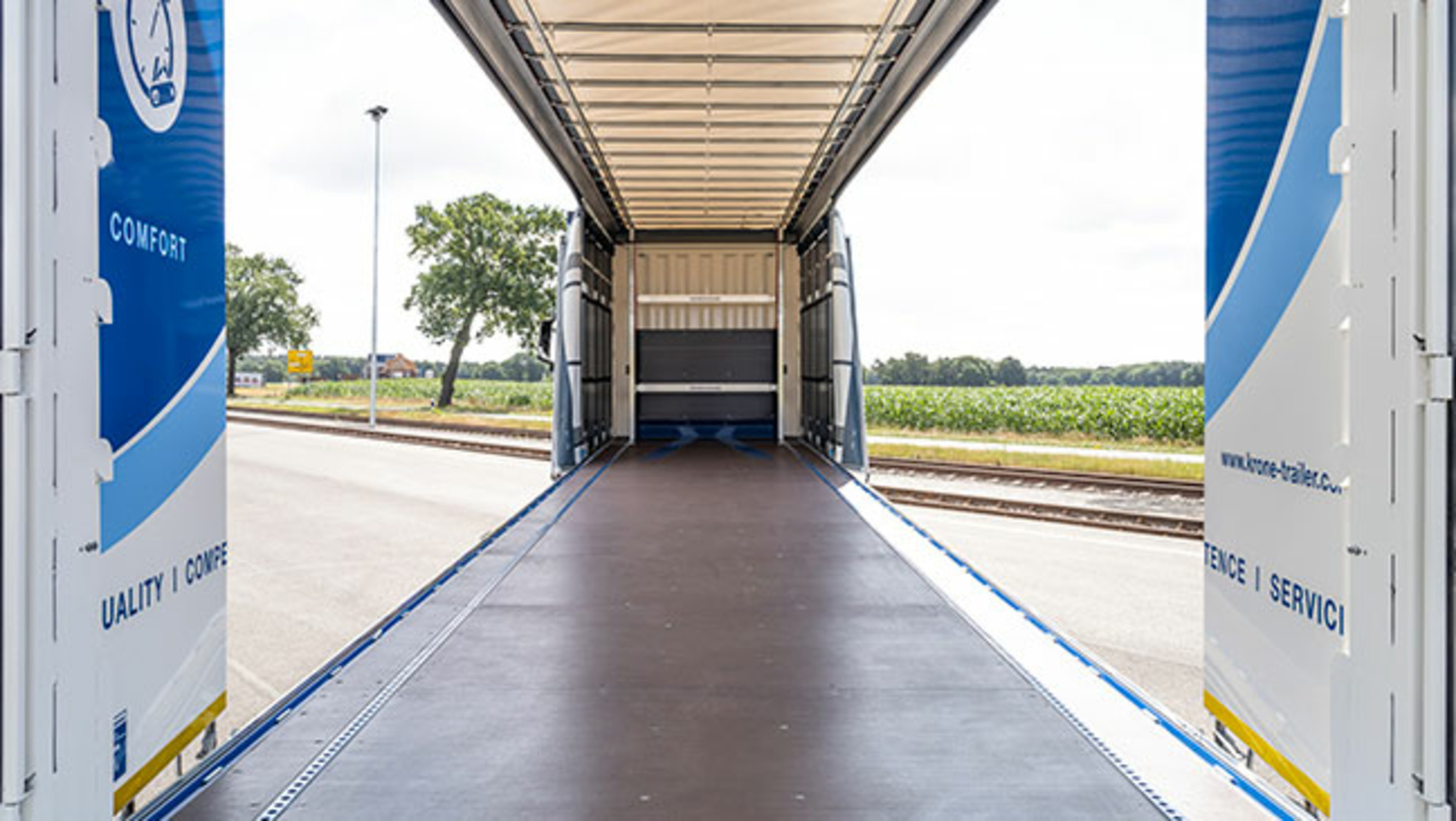

The lifting roof allows loading up to under the crossbars. The lifting height from the driving position is 600 mm. In addition, a body height reduced by 100 mm can be set for driving operation. The lifting roof is operated hydropneumatically via a central pump, whereby the desired side can be preselected separately.

The lifting roof is operated hydro-pneumatically via a central pump, whereby the desired side can be preselected separately.

As a further load securing option, 28 pairs of lashing rings are standard. These are recessed into the outer frame at even intervals.

The running rail on the side of the outer frame has three functions: Safe guidance of the Comfort tarpaulin, pallet stop and forklift collision protection. The running rail is segmented so that individual elements can be replaced in the event of damage.

For quick adjustment to a reduced structure height, the tarpaulin can be gathered at the bottom using expander rubbers..

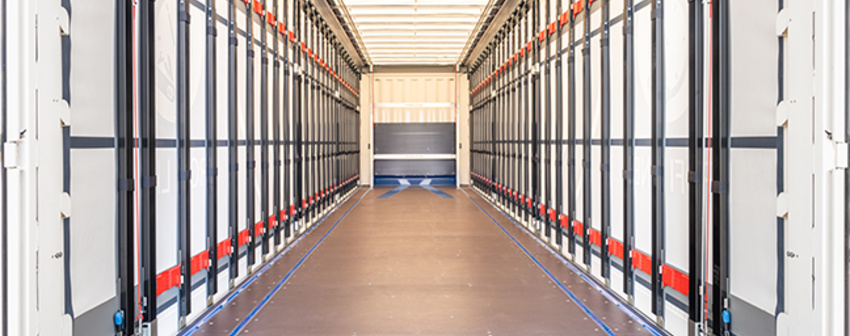

Micro stanchions are guided in rails at the top and bottom. This allows quick accessibility to the goods. All common load securing certificates are fulfilled.

A stopper on the running rail holds the opened tarpaulin in position.

Underrun protection and the lighting brackets are fitted in a protected position and can be separately replaced. Robust ram protection elements protect the rear when docking.

The setting valves are well protected behind the axle assembly. The wheel chocks, too, are easily accessible.

Electric and air connections are placed on two levels to prevent cables from snagging. The modular concept allows for any type of extension.

Mega Liner Comfort iki farklı lastikle sunuluyor: 19,5 inç akslar için Mega lastikler veya Profi-Liner lastikler ve 22,5 inç akslar.

Zeminde delikli raylar ve yükün arkasını sabitlemek için iki dikey ve iki yatay alüminyum kilitleme kirişi kullanılır.

Zeminde delikli raylar ve yükün arkasını sabitlemek için iki dikey ve iki yatay alüminyum kilitleme kirişi kullanılır.

Zeminde delikli raylar ve yükün arkasını sabitlemek için iki dikey ve iki yatay alüminyum kilitleme kirişi kullanılır.

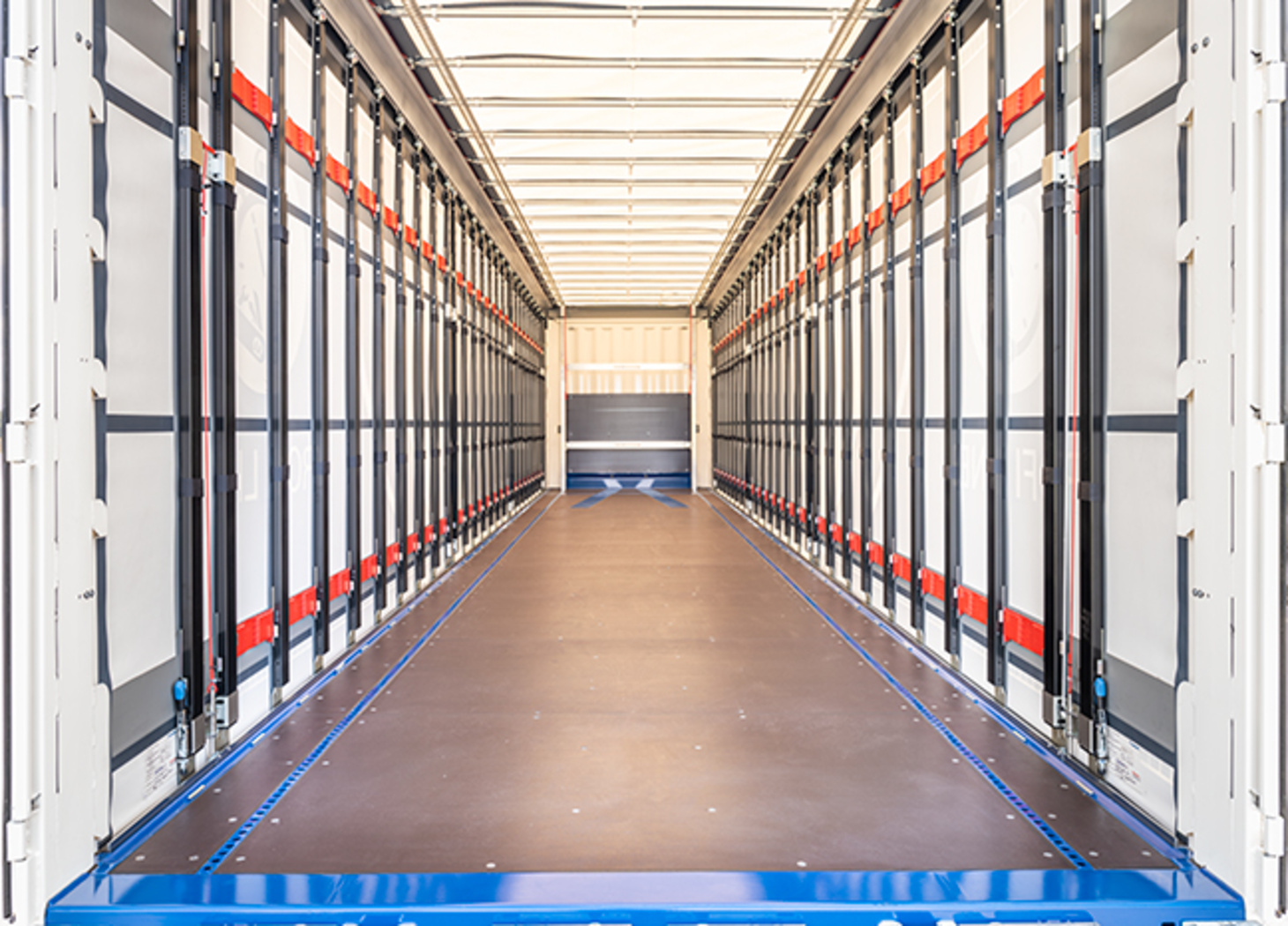

Perforated rails in the floor and two vertical and two horizontal locking beams made of aluminium are used to secure the load at the rear.

Perforated rails in the floor and two vertical and two horizontal locking beams made of aluminium are used to secure the load at the rear.

Perforated rails in the floor and two vertical and two horizontal locking beams made of aluminium are used to secure the load at the rear.

The Profi Liner Comfort is available with two different tyres: for Mega tyres and 19.5-inch axles or with Profi Liner tyres and 22.5-inch axles.

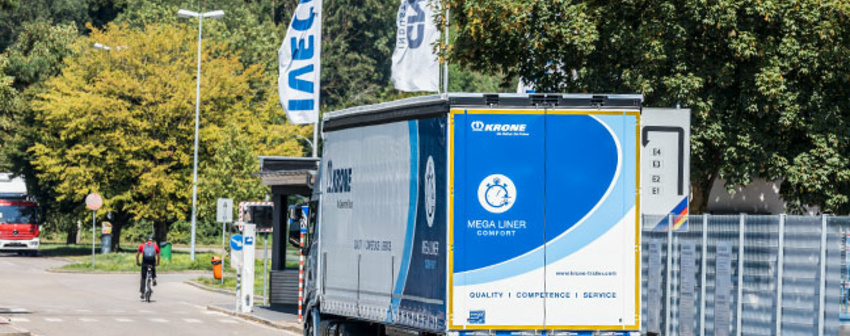

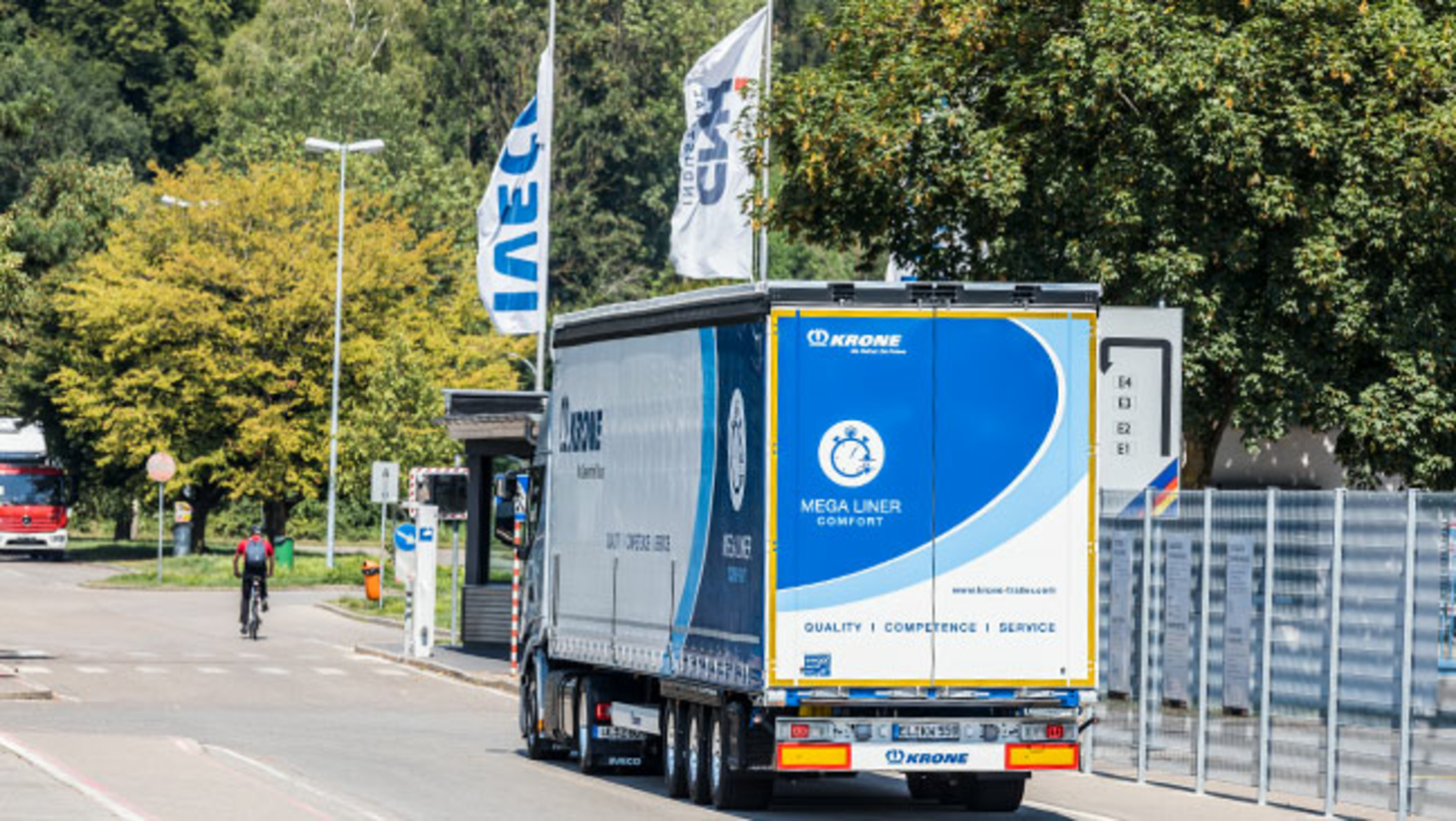

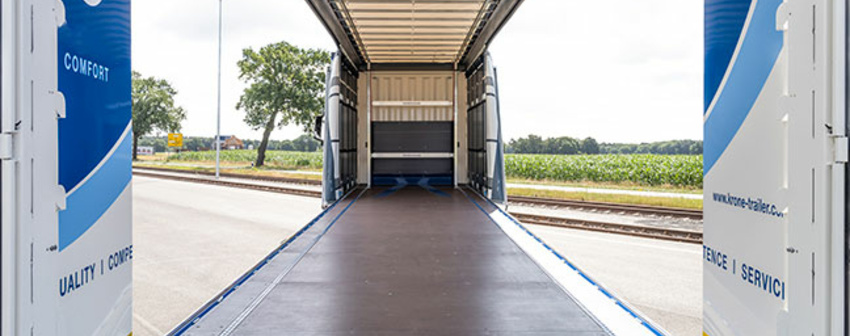

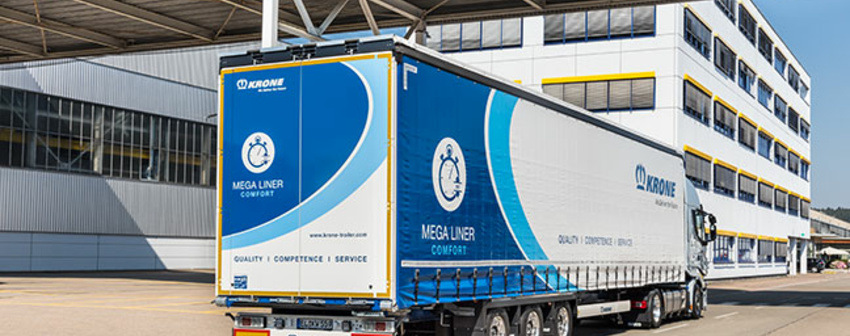

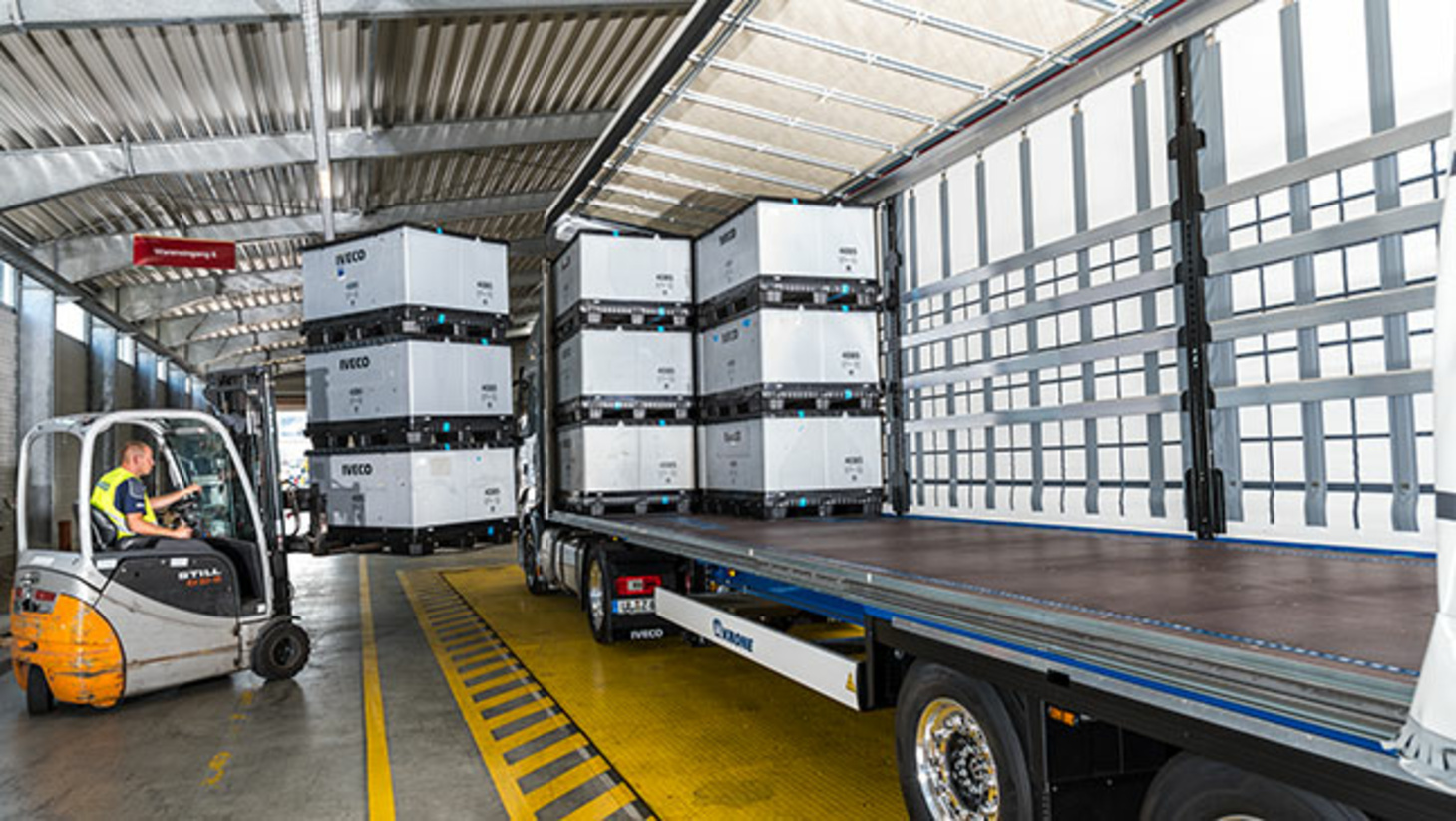

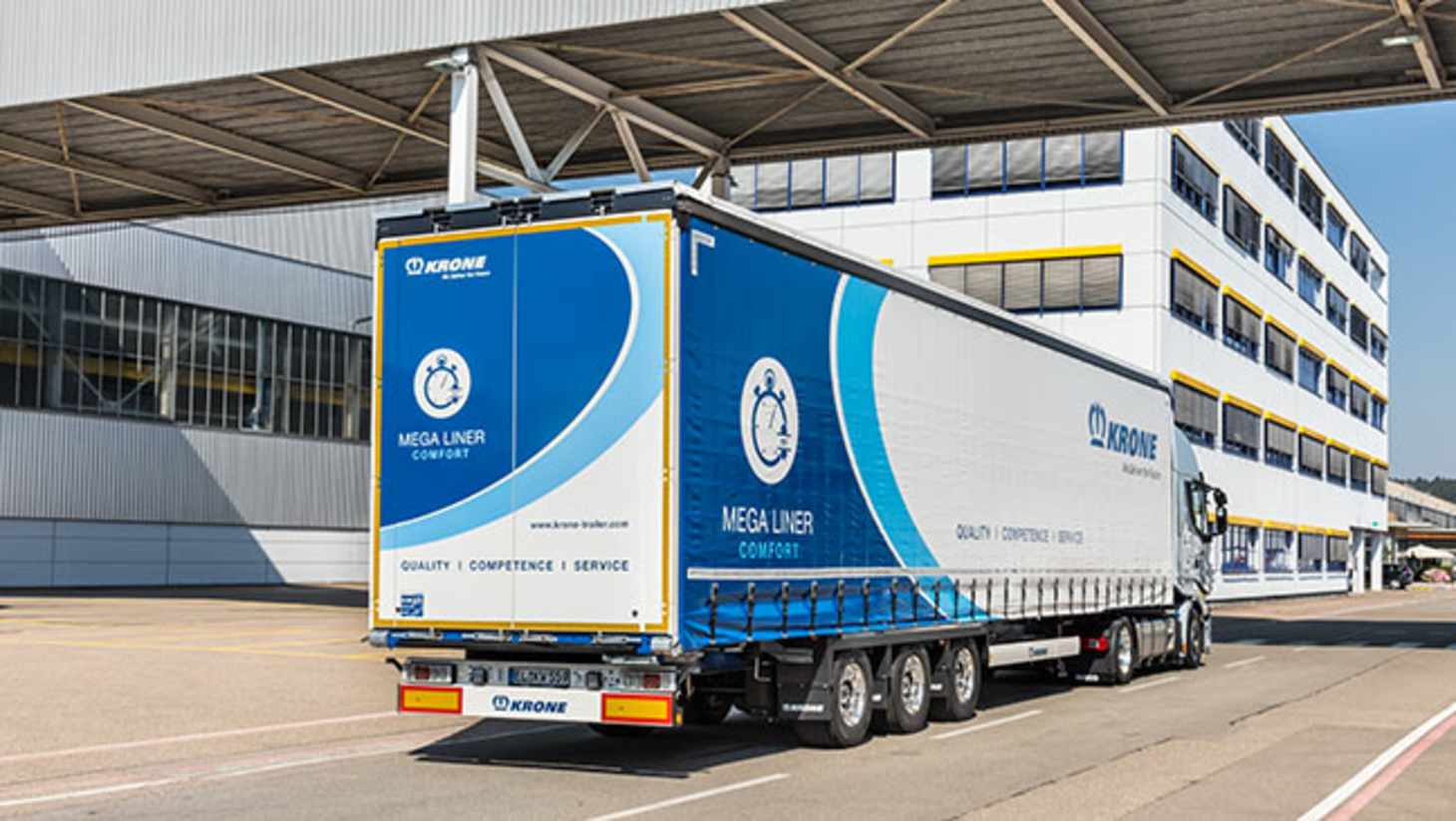

Impressions

Technical data

Fifth-wheel load

0 kg

Axle load

0 kg

Permissible total weight

0 kg

Coupling height

0 mm

Services

KRONE quality does not end at the factory gate.

Documents

Product-specific data sheets and operating instructions can be found in our download centre.
