eCool Liner

with fully electric Celsineo cooling unit

  • EMISSION FREE OPERATION
  • LOWER CO2 EMISSION
  • INCREASED RANGE
  • RECUPERATON WHEN BRAKING
  • FREE CHOICE OF TRACTOR
documents contact us
KRONE eTrailer

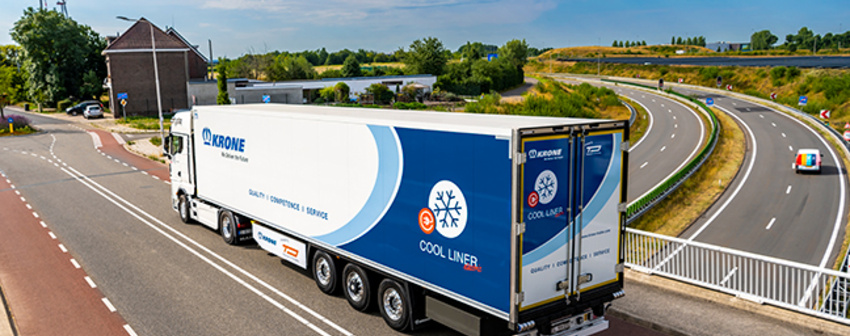

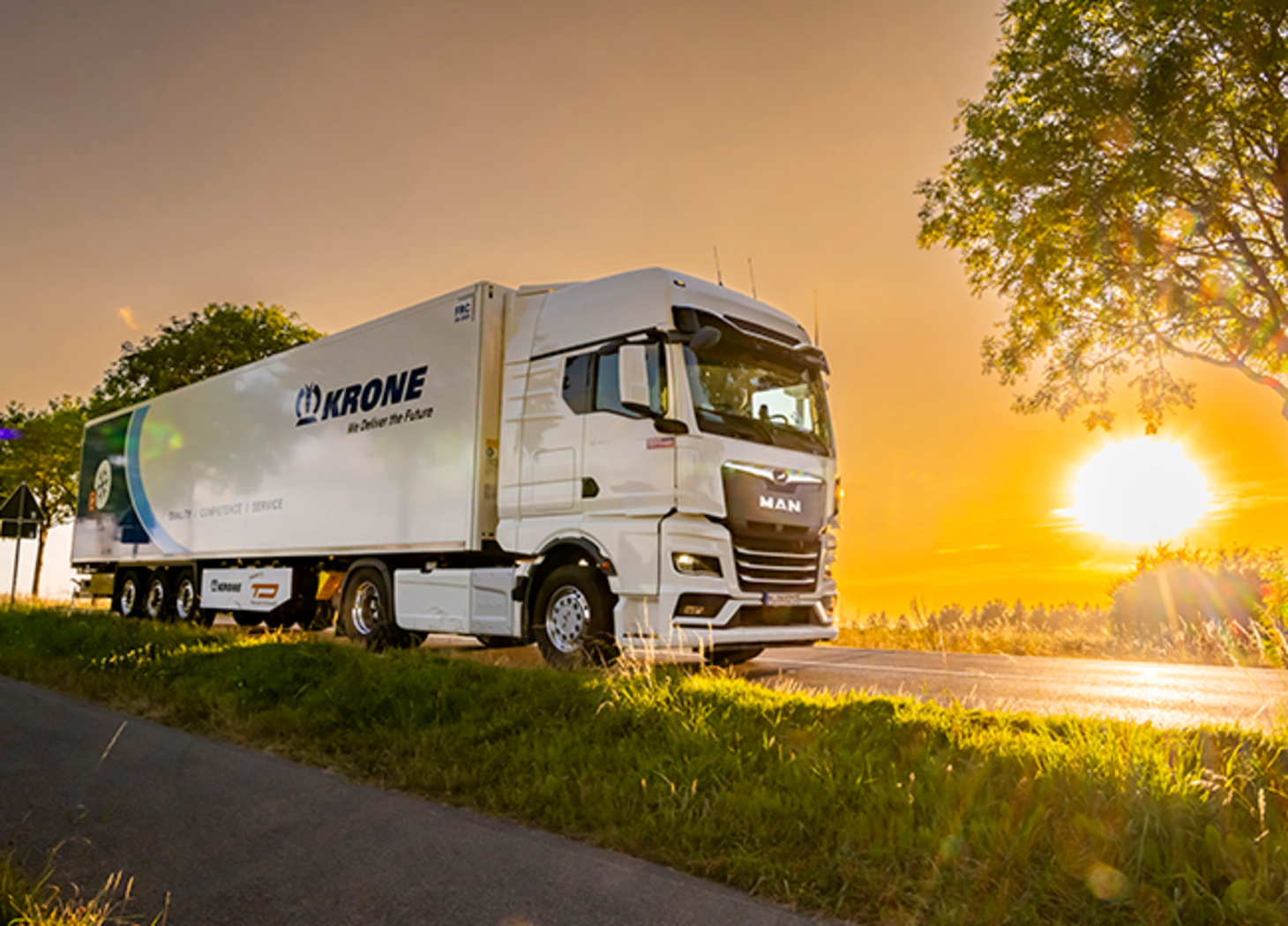

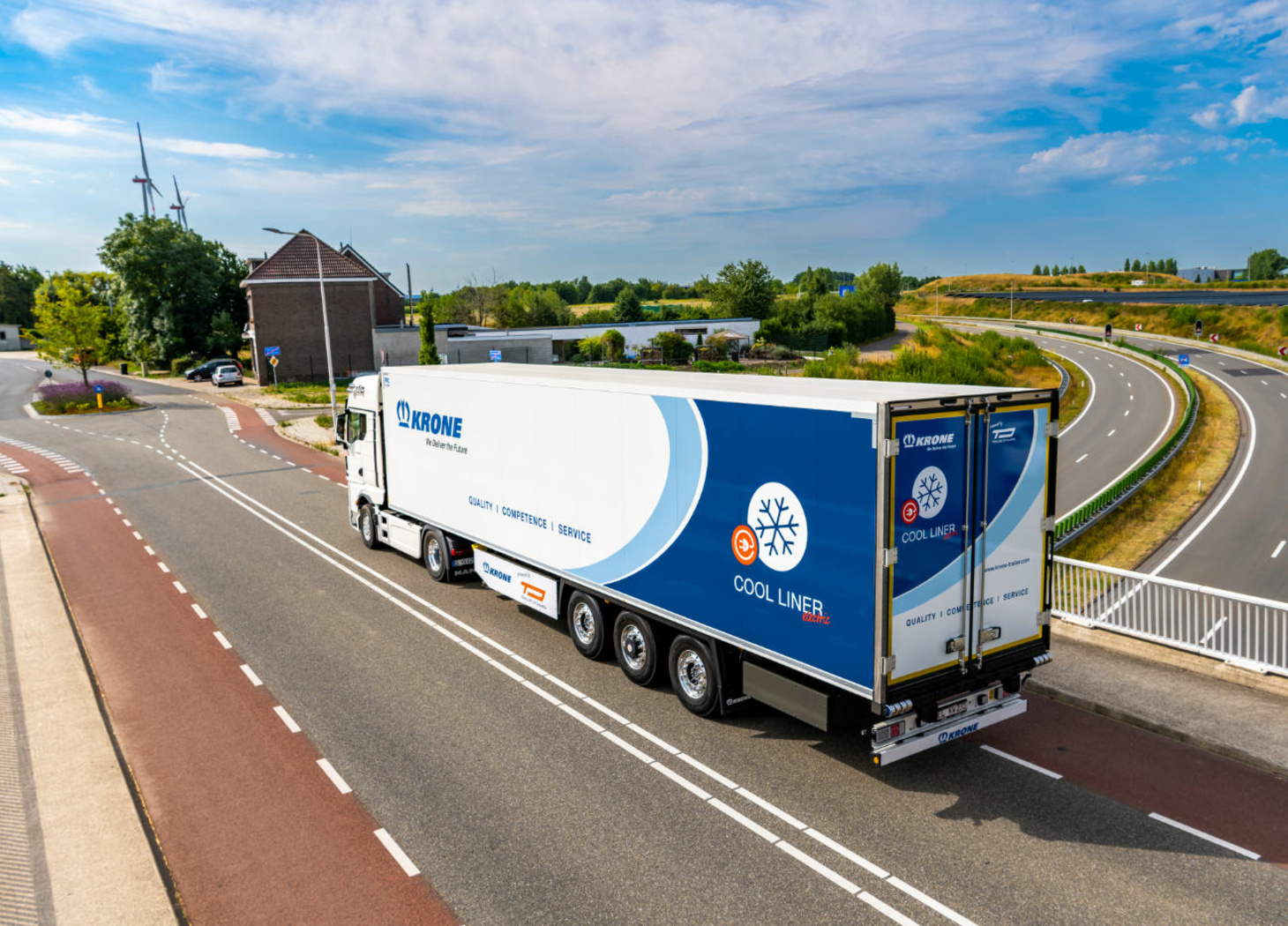

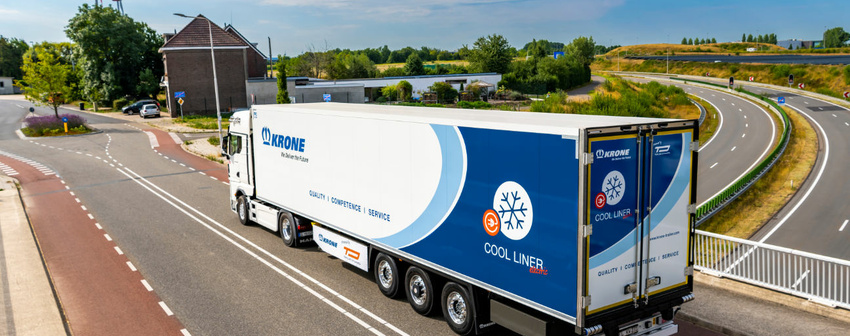

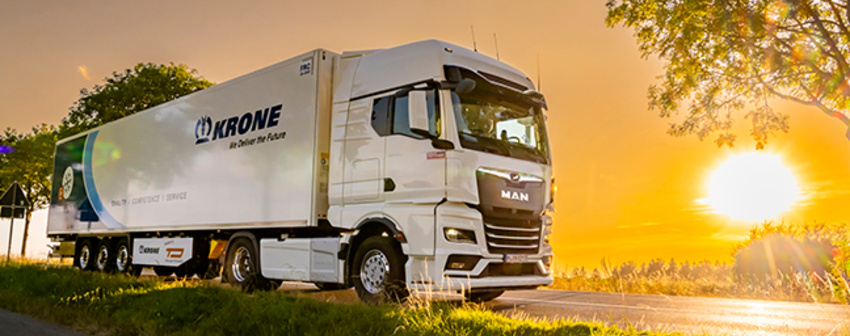

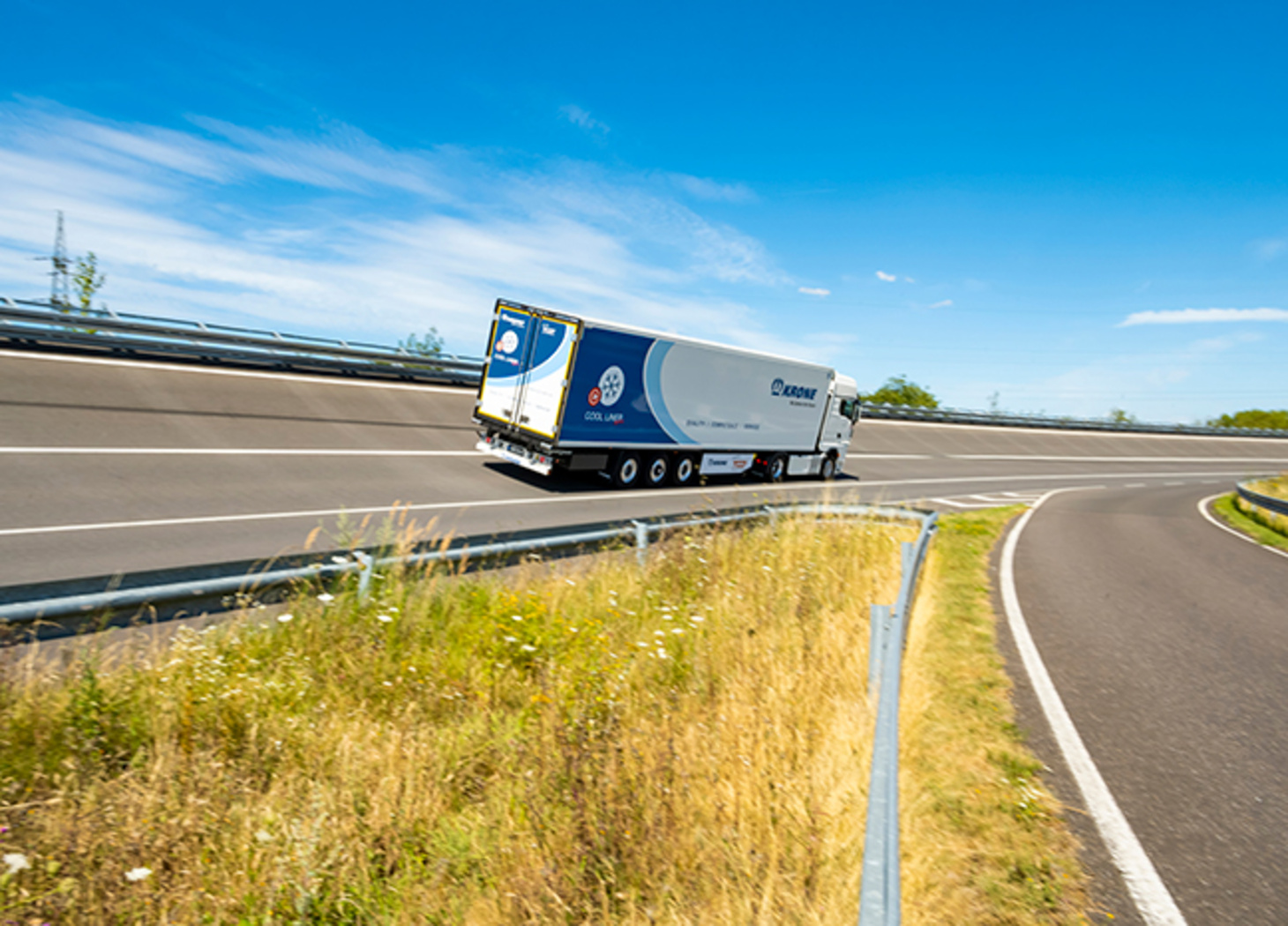

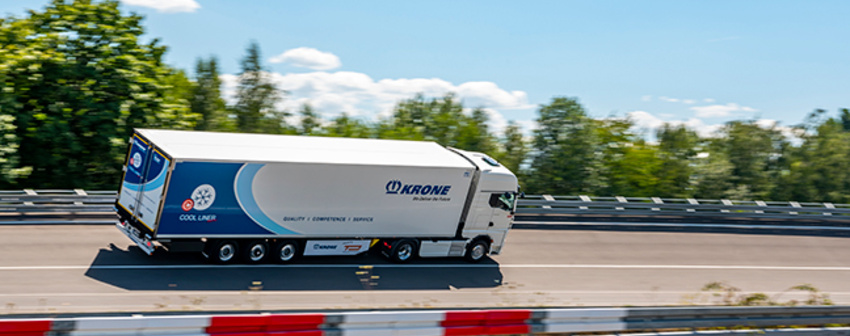

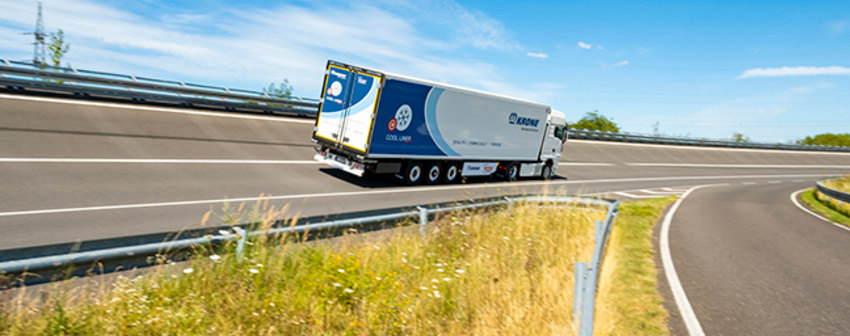

In the innovative Krone eCool Liner, the all-electric Celsineo refrigeration unit works in close coordination with the electrified drive to ensure that the cargo is cooled without emissions. The 800 V high-voltage system not only supplies the refrigeration unit with an average power requirement of 15 kW in the deep-freeze range, but also the electric drive train of the eTrailer.

Technical data

Type

SDR 27 eL4-DS

KING PIN LOAD

12000 kg

AXLE LOAD

27000 kg

ALLOWABLE GROSS WEIGHT

39000 kg

5TH WHEEL HEIGHT

1150 mm

AXLE SPREAD

1310 mm

INTERNAL LENGTH

13310 mm

INTERNAL WIDTH

2495 mm

INTERNAL HEIGHT

2630 mm

eCool Liner

Always a plus on equipment.

Simply inimitable

Continuous chassis

The Cool Liner is equipped with a continuous chassis. Tensile forces are transferred to the chassis, which protects the coffer superstructure during vehicle coupling and uncoupling. The forces involved when docking to the ramp are also absorbed by the chassis.

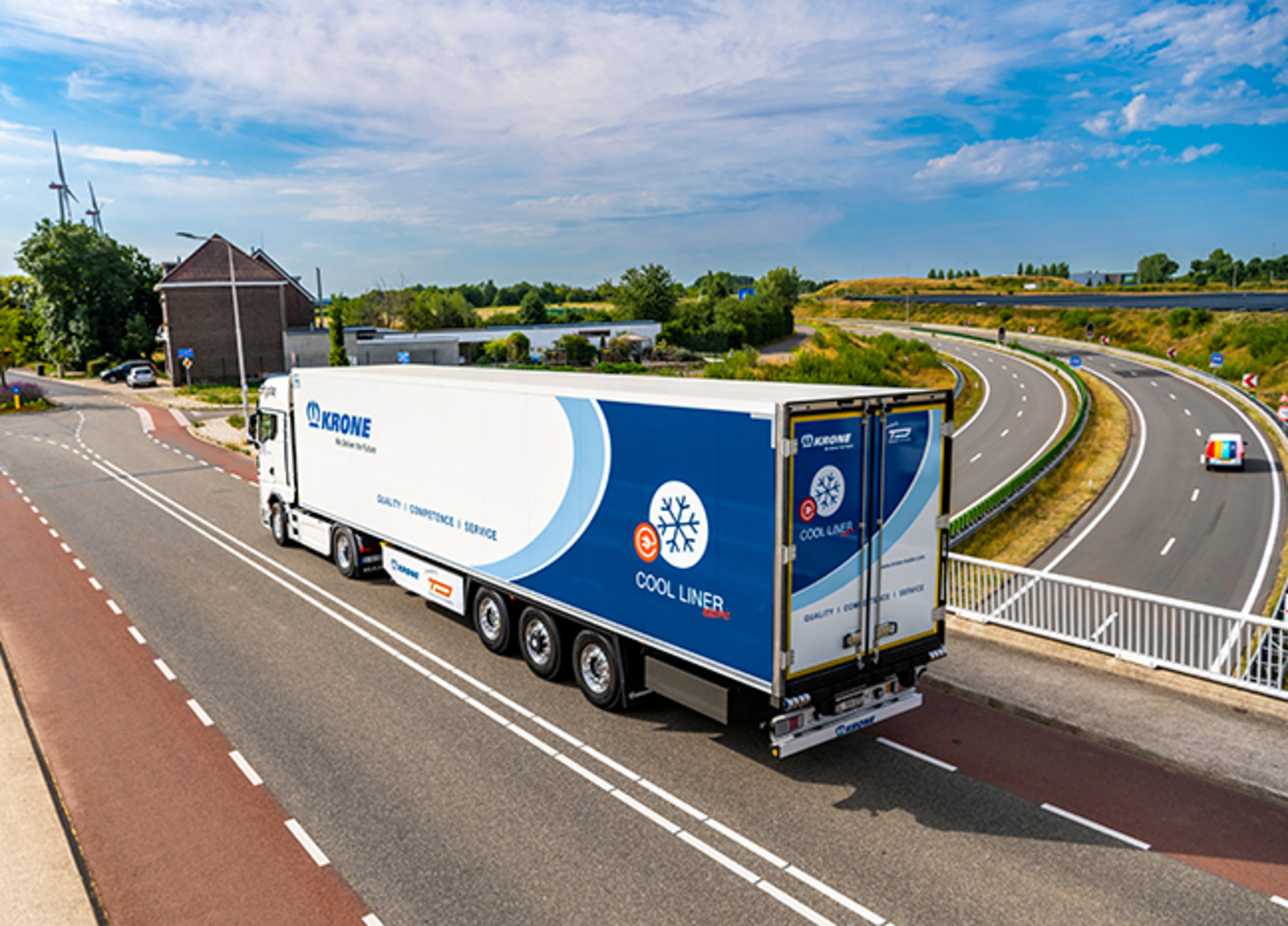

Practical rear gantry

The stainless steel rear gantry has been designed to be suitable for both docks and ramps. Door hinges are recessed at the sides to allow an optimal door opening angle. As an option, four door locks are available.

Water-tight kick strips

The aluminium kick strip is welded to the side walls and sealed watertight with the one-piece low noise aluminium floor.

Optimum air guidance

Stable aluminium profiles ensure the best front wall protection and optimal air flow with their large profile cross-section.

Bolted evaporator guard

Haccp-compliant and removable to aid cleaning.

Flexible air channel

. The flexible, ceiling-mounted air ducts evenly distribute cold air in the trailer and are also suitable for both double deck loading and using a cross partition.

LED internal lights

The internal lighting of the superstructure is provided by four bright LED lights under the roof.

Intelligent door electronics

For added protection, the marker lamps are integrally housed into the rear frame. The door contact switch for the internal lighting reacts without contact and can be combined with KRONE Telematics.

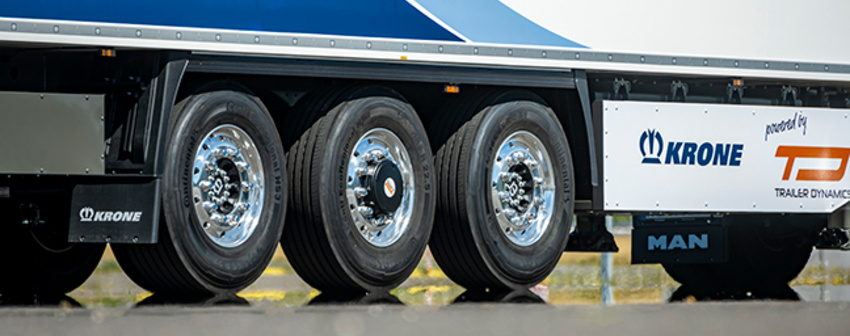

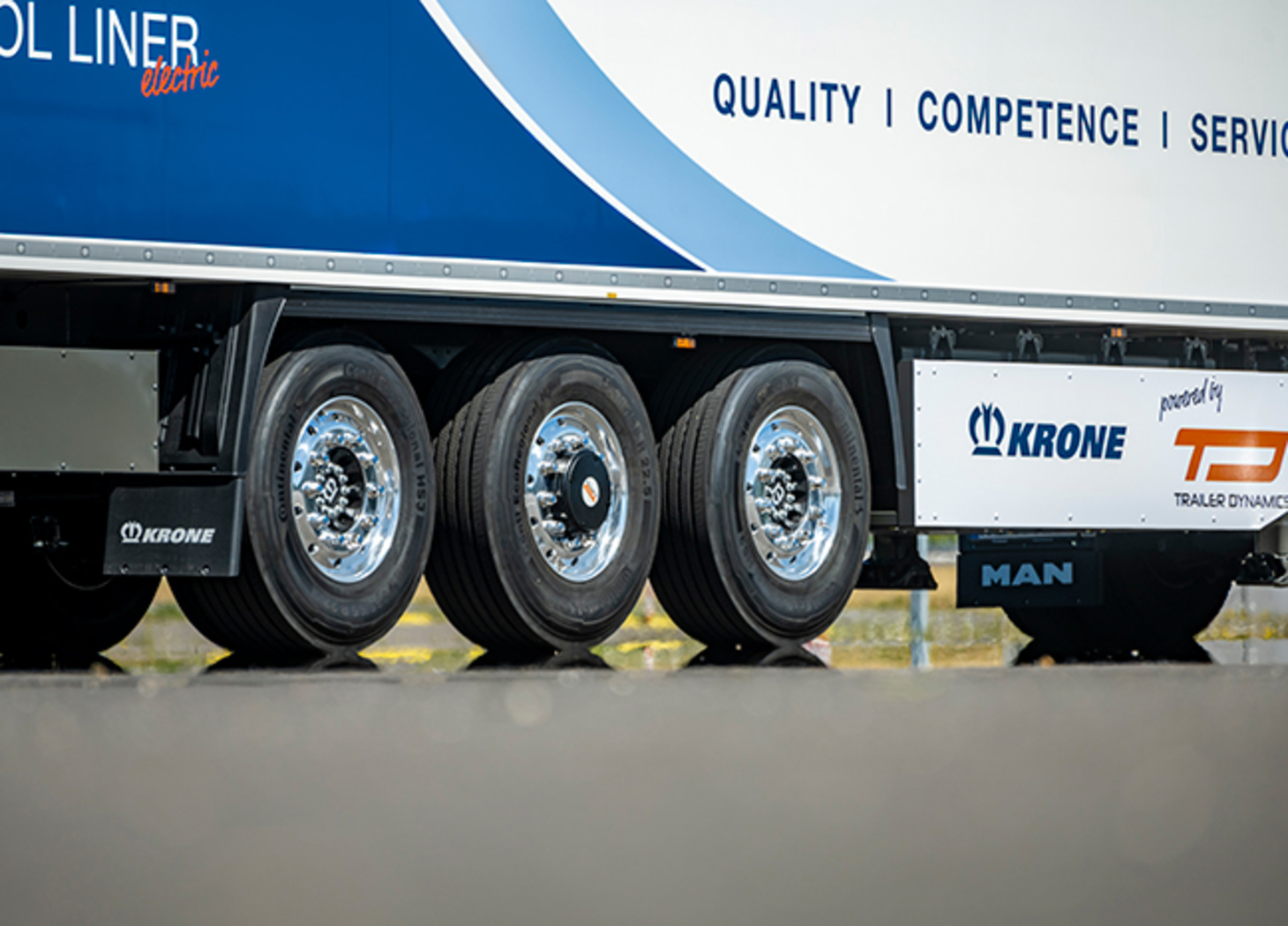

Innovative drive system

The innovative technology of Trailer Dynamics works with closely coordinated components. The core is a powerful electric driveline that supports the tractor in driving and also recovers braking energy through recuperation. The eAxle has a continuous output of 360 kW and a peak output of up to 580 kW. The battery carried in the eCool Liner can cover capacities from 300 kW to 600 kW, depending on the customer's requirements and area of application.

The 800 V high-voltage system not only supplies the all-electric Celsineo refrigeration unit, which has an average power requirement of 15 kW in the deep-freeze area, but also the electric drive chain of the eTrailer.



The innovative technology of Trailer Dynamics works with closely coordinated components. The core is a powerful electric driveline that supports the tractor in driving and also recovers braking energy through recuperation. The eAxle has a continuous output of 360 kW and a peak output of up to 580 kW. The battery carried in the eCool Liner can cover capacities from 300 kW to 600 kW, depending on the customer's requirements and area of application.

The 800 V high-voltage system not only supplies the all-electric Celsineo refrigeration unit, which has an average power requirement of 15 kW in the deep-freeze area, but also the electric drive chain of the eTrailer.



Fully electric CELSINEO cooling unit

The all-electric Celsineo refrigeration unit, in close coordination with the electrified drive, ensures that the cargo is cooled without emissions. The 800 V high-voltage system not only supplies the refrigeration unit with an average power requirement of 15 kW in the deep-freeze range, but also the electric drive train of the eTrailer. The cooling unit of the Krone eCool Liner can thus be operated completely without diesel engine support, in addition, the consumption of the tractor unit can also be reduced.

The all-electric Celsineo refrigeration unit, in close coordination with the electrified drive, ensures that the cargo is cooled without emissions. The 800 V high-voltage system not only supplies the refrigeration unit with an average power requirement of 15 kW in the deep-freeze range, but also the electric drive train of the eTrailer. The cooling unit of the Krone eCool Liner can thus be operated completely without diesel engine support, in addition, the consumption of the tractor unit can also be reduced.
