Cool Box

Cool Box

Type: WR 7,3 S

  • Superstructure made of tried and tested Duoplex Steel panels
  • Panels made of steel deck layer and 100 % CFC-free foam
  • 260 mm high, weight-optimised floor assembly
  • ATP certification - IR
  • Also available in a double deck configuration
documents contact us
KRONE Wechselsysteme

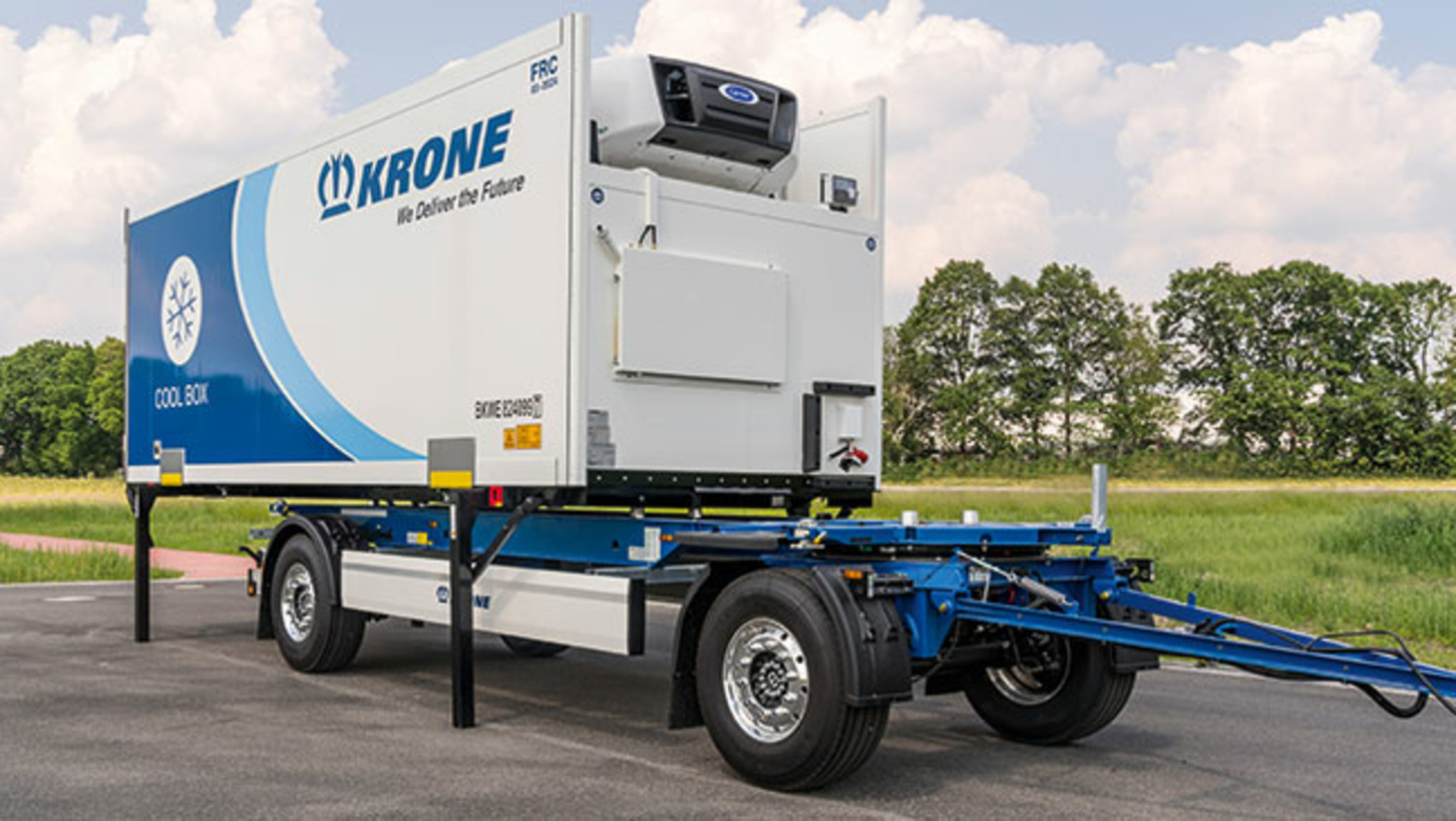

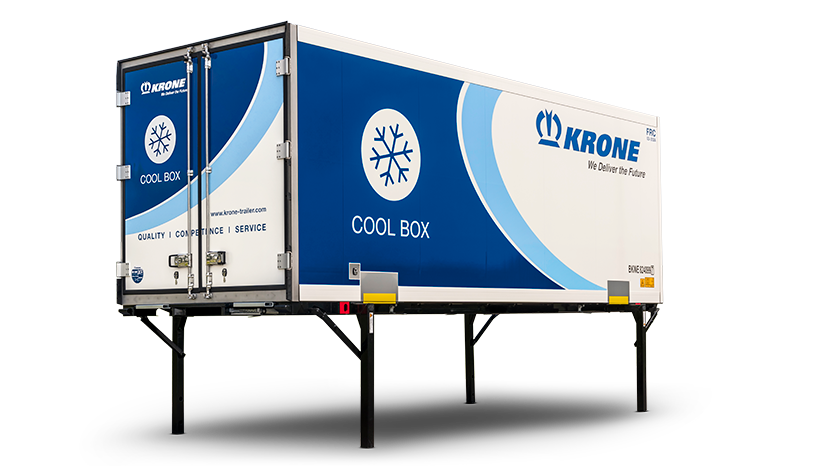

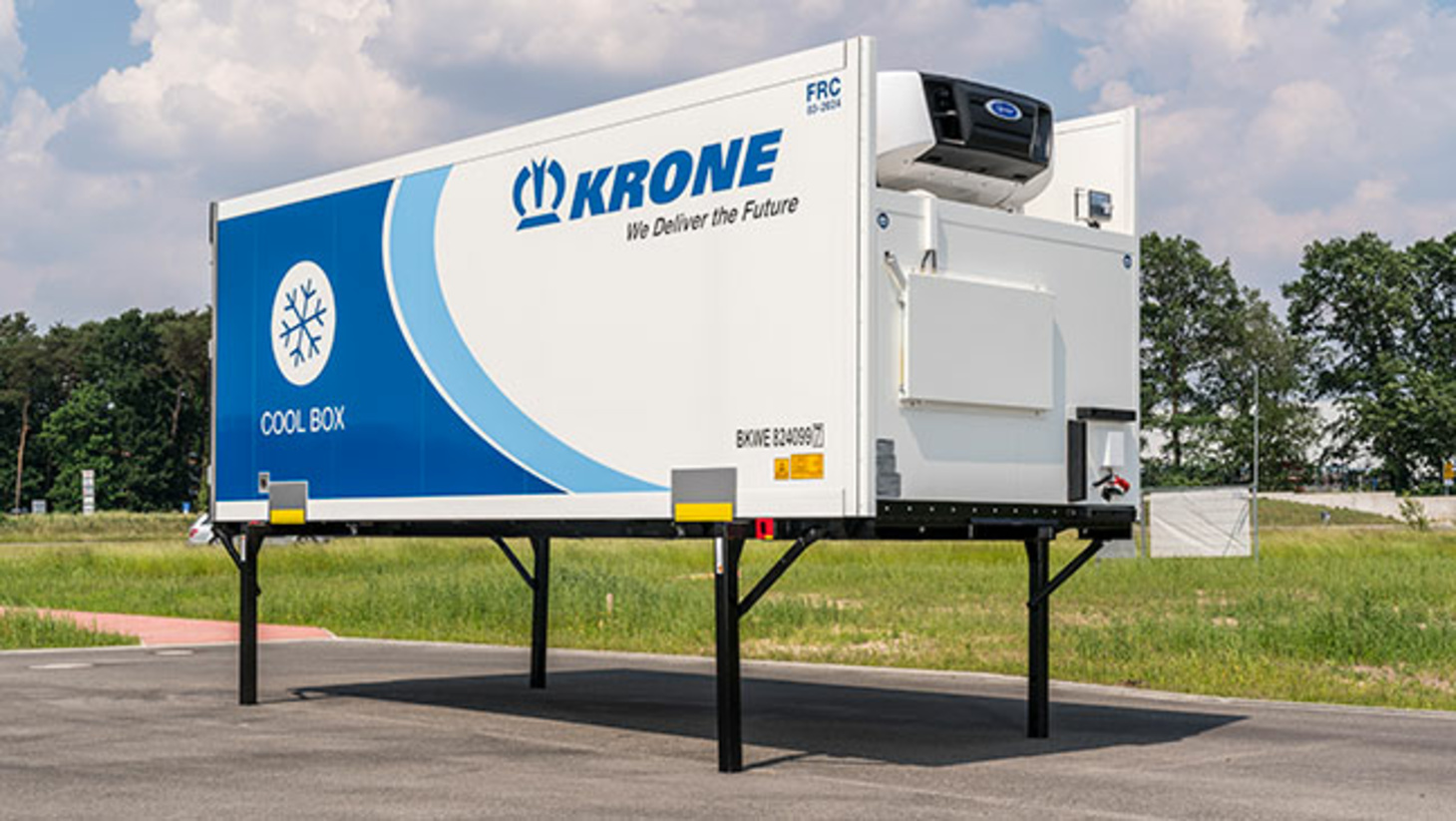

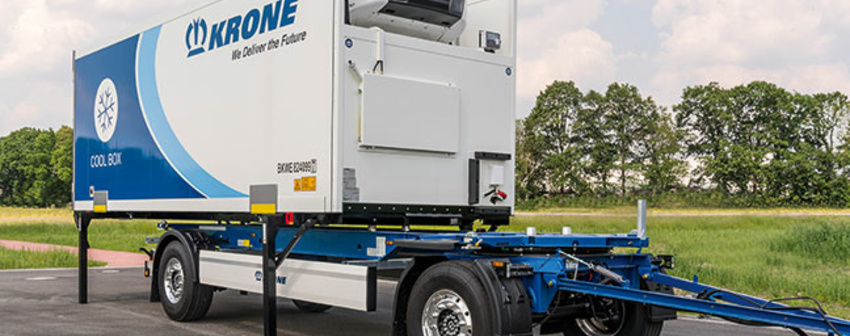

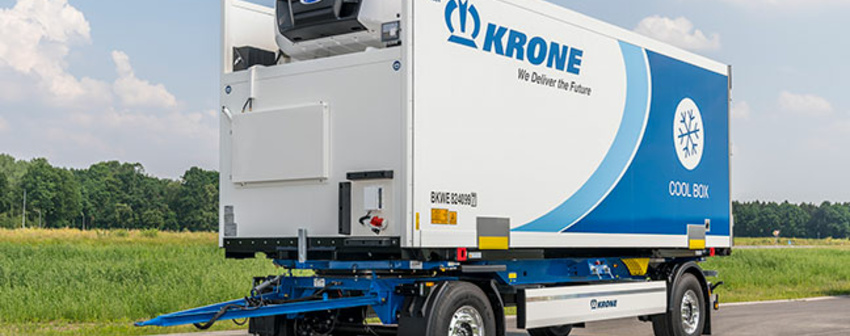

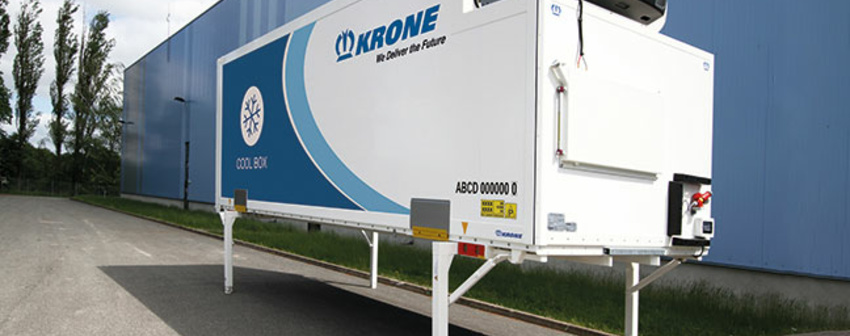

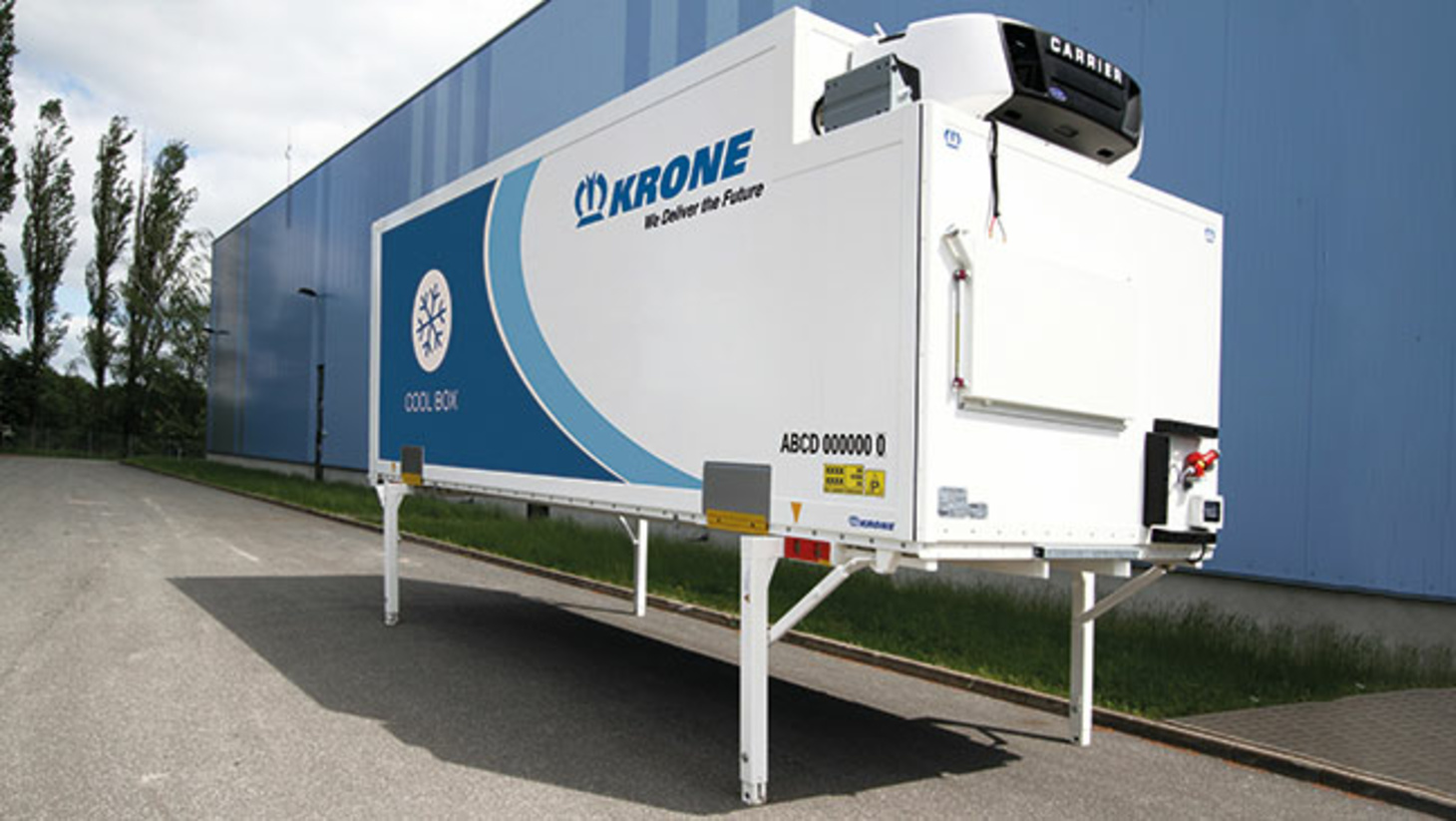

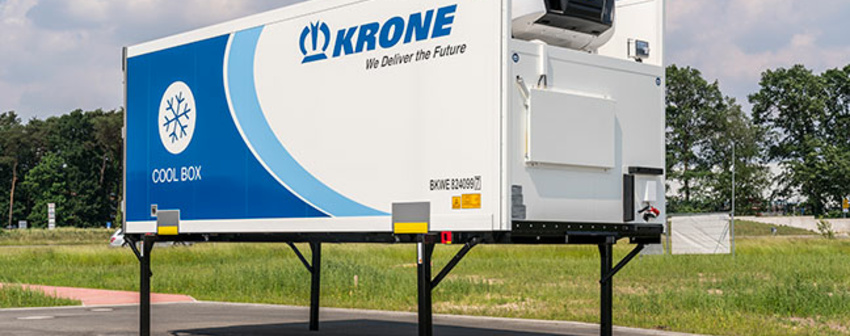

Swap body with cooling system

KRONE rounds off its range of insulated superstructures with the Cool Box Duoplex Steel. Robust and sophisticated down to the smallest detail. The superstructure combines the advantages of a swap unit with those of an insulated superstructure. The proven Duoplex Steel technology is used here. The box features sturdy panels with steel deck layers and a reinforced foamed floor assembly.

Technical data

Type

WR 7.3 S

Permitted total weight

16000 kg

Approx dead weight without cooling system

3490 kg

Approx. payload.

12150 kg

Clear length of load compartment

7240 mm

Clear width of load compartment

2460 mm

Total length

7450 mm

Height of floor assembly, including floor

260 mm

Clear inner height

2400 mm

Corner height

2750 mm

Parking level

1320 mm

Cool Box

Always a plus on equipment.

Simply inimitable

Cool Box Duoplex Steel

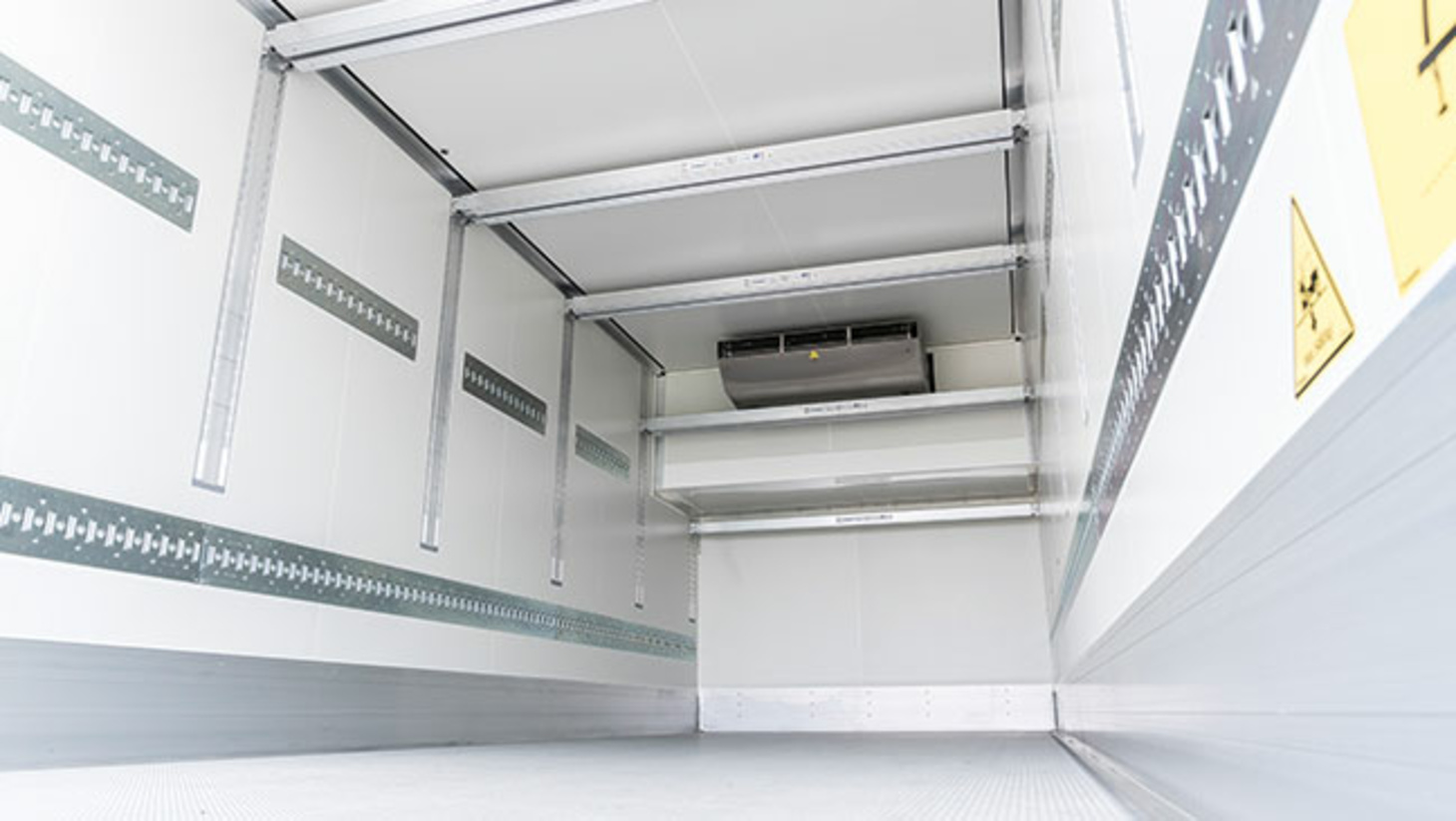

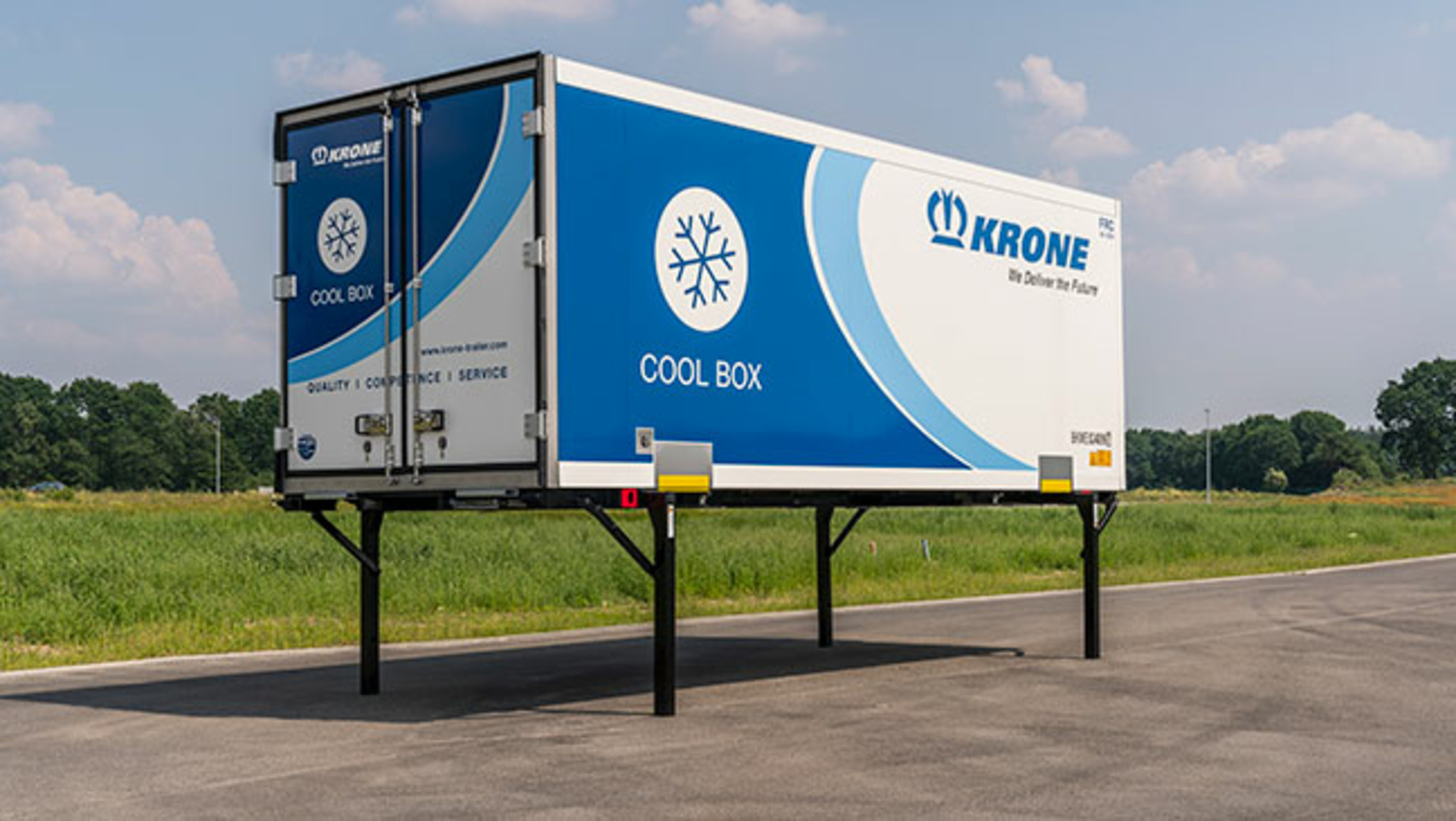

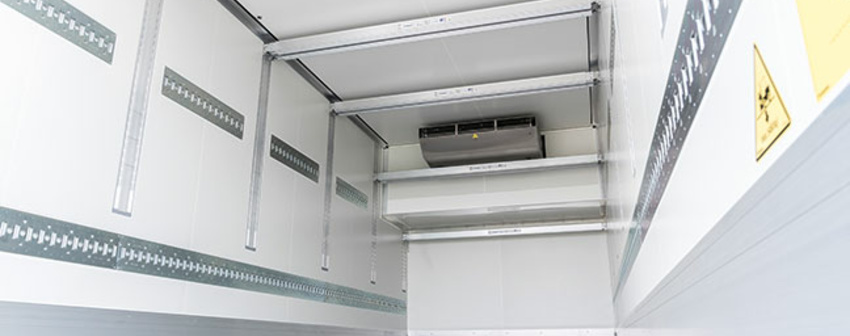

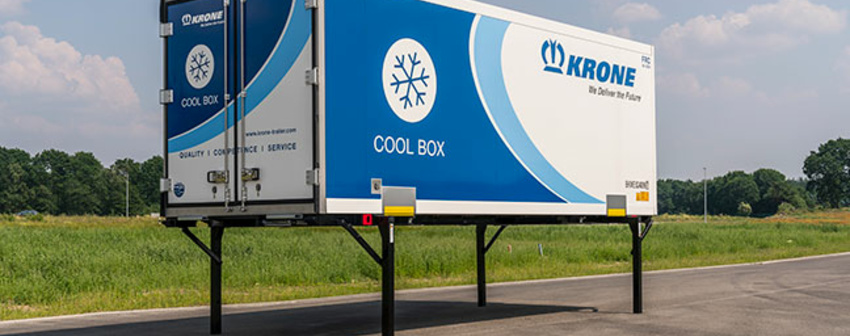

A robust container door with external turn rod locks is standard equipment. On request, you cooling system and temperature recorders from all leading manufacturers. The interior also offers the perfect solution for all your transport needs. The double-deck equipment with a continuous lashing rail at the bottom as well as split lashing rails between the double-deck guide rails can be easily combined. A low-noise aluminium floor complies with noise reduction regulations. The floor module, at just 260 mm high, allows an internal height of 2,400 mm in the standard version (corner height 2,750 mm) with a dead weight of just approx. 3,490 kg (without cooling system). Robust and economical down to the smallest detail. It provides you with the right solution for every transport task.

A robust container door with external turn rod locks is standard equipment. On request, you cooling system and temperature recorders from all leading manufacturers. The interior also offers the perfect solution for all your transport needs. The double-deck equipment with a continuous lashing rail at the bottom as well as split lashing rails between the double-deck guide rails can be easily combined. A low-noise aluminium floor complies with noise reduction regulations. The floor module, at just 260 mm high, allows an internal height of 2,400 mm in the standard version (corner height 2,750 mm) with a dead weight of just approx. 3,490 kg (without cooling system). Robust and economical down to the smallest detail. It provides you with the right solution for every transport task.

A robust container door with external turn rod locks is standard equipment. On request, you cooling system and temperature recorders from all leading manufacturers. The interior also offers the perfect solution for all your transport needs. The double-deck equipment with a continuous lashing rail at the bottom as well as split lashing rails between the double-deck guide rails can be easily combined. A low-noise aluminium floor complies with noise reduction regulations. The floor module, at just 260 mm high, allows an internal height of 2,400 mm in the standard version (corner height 2,750 mm) with a dead weight of just approx. 3,490 kg (without cooling system). Robust and economical down to the smallest detail. It provides you with the right solution for every transport task.

A robust container door with external turn rod locks is standard equipment. On request, you cooling system and temperature recorders from all leading manufacturers. The interior also offers the perfect solution for all your transport needs. The double-deck equipment with a continuous lashing rail at the bottom as well as split lashing rails between the double-deck guide rails can be easily combined. A low-noise aluminium floor complies with noise reduction regulations. The floor module, at just 260 mm high, allows an internal height of 2,400 mm in the standard version (corner height 2,750 mm) with a dead weight of just approx. 3,490 kg (without cooling system). Robust and economical down to the smallest detail. It provides you with the right solution for every transport task.

A robust container door with external turn rod locks is standard equipment. On request, you cooling system and temperature recorders from all leading manufacturers. The interior also offers the perfect solution for all your transport needs. The double-deck equipment with a continuous lashing rail at the bottom as well as split lashing rails between the double-deck guide rails can be easily combined. A low-noise aluminium floor complies with noise reduction regulations. The floor module, at just 260 mm high, allows an internal height of 2,400 mm in the standard version (corner height 2,750 mm) with a dead weight of just approx. 3,490 kg (without cooling system). Robust and economical down to the smallest detail. It provides you with the right solution for every transport task.

A robust container door with external turn rod locks is standard equipment. On request, you cooling system and temperature recorders from all leading manufacturers. The interior also offers the perfect solution for all your transport needs. The double-deck equipment with a continuous lashing rail at the bottom as well as split lashing rails between the double-deck guide rails can be easily combined. A low-noise aluminium floor complies with noise reduction regulations. The floor module, at just 260 mm high, allows an internal height of 2,400 mm in the standard version (corner height 2,750 mm) with a dead weight of just approx. 3,490 kg (without cooling system). Robust and economical down to the smallest detail. It provides you with the right solution for every transport task.

A robust container door with external turn rod locks is standard equipment. On request, you cooling system and temperature recorders from all leading manufacturers. The interior also offers the perfect solution for all your transport needs. The double-deck equipment with a continuous lashing rail at the bottom as well as split lashing rails between the double-deck guide rails can be easily combined. A low-noise aluminium floor complies with noise reduction regulations. The floor module, at just 260 mm high, allows an internal height of 2,400 mm in the standard version (corner height 2,750 mm) with a dead weight of just approx. 3,490 kg (without cooling system). Robust and economical down to the smallest detail. It provides you with the right solution for every transport task.

A robust container door with external turn rod locks is standard equipment. On request, you cooling system and temperature recorders from all leading manufacturers. The interior also offers the perfect solution for all your transport needs. The double-deck equipment with a continuous lashing rail at the bottom as well as split lashing rails between the double-deck guide rails can be easily combined. A low-noise aluminium floor complies with noise reduction regulations. The floor module, at just 260 mm high, allows an internal height of 2,400 mm in the standard version (corner height 2,750 mm) with a dead weight of just approx. 3,490 kg (without cooling system). Robust and economical down to the smallest detail. It provides you with the right solution for every transport task.
