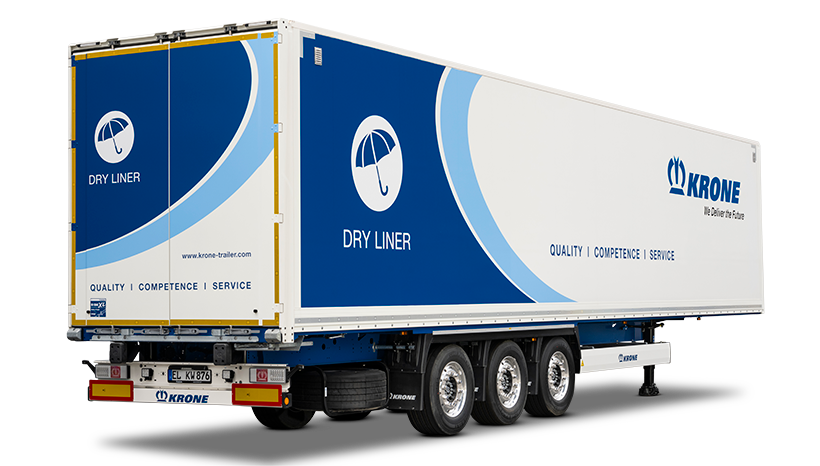

Dry Liner
Type: SDK 27 eLB41-STG
- Robust and reliable
- Keyhole plates inside as standard
- Variable interior
- Security for sensitive goods
- Also available in lightly insulated version
Box bodies have to be tough. That's why the Dry Liner from KRONE is particularly robust. The sturdy chassis has diagonal frame reinforcements and can easily cope with strong starts on the ramp. The Dry Liner transports everything safely and securely to its destination. Whether clothes, high-quality electronics, paints or furniture.
Technical data
Type
SDK 27 eLB41-STG
King pin load
12000 kg
Axle load
27000 kg
Permissible total weight
39000 kg
Dead weight approx.
7890 kg
Payload (Technically possible)
31110 kg
Wheelbase
1310 / 1310 mm
Overall height front
100 mm
Semi-mounted height unladen
1150 mm
Internal Length
13620 mm
Internal Width
2480 mm
Internal Height
2715 mm
Loading height in the rear portal
2650 mm
Technical data
Type
SDK 27 eLB41-STG
King pin load
12000 kg
Axle load
27000 kg
Permissible total weight
39000 kg
Dead weight approx.
7890 kg
Payload (Technically possible)
31110 kg
Wheelbase
1310 / 1310 mm
Overall height front
100 mm
Semi-mounted height unladen
1150 mm
Internal Length
13620 mm
Internal Width
2480 mm
Internal Height
2715 mm
Loading height in the rear portal
2650 mm
Always a plus on equipment.
Simply inimitable

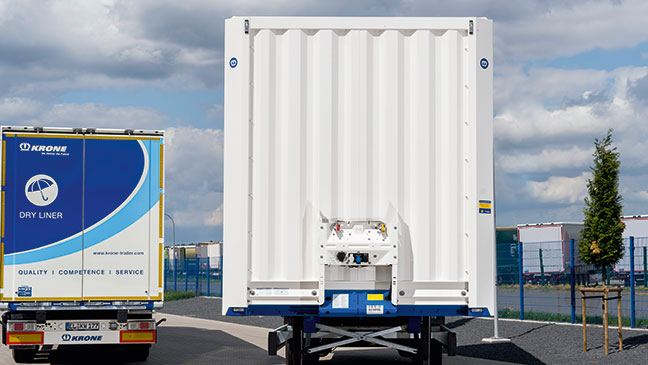

Stable front wall

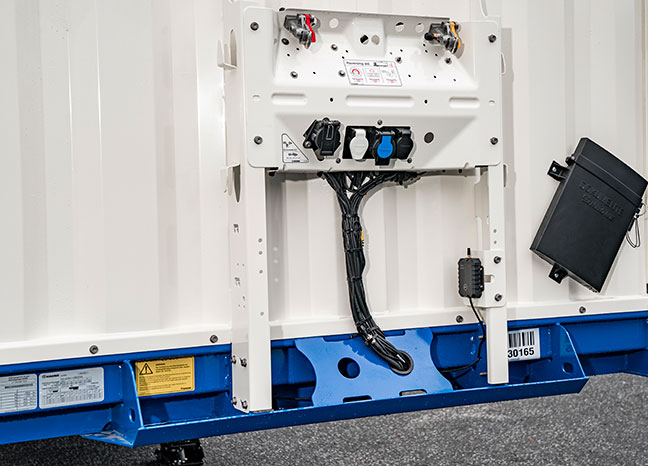

The front wall has as an aerodynamic design. The coupling support offers light and air connections on two levels.
Optimum tightness

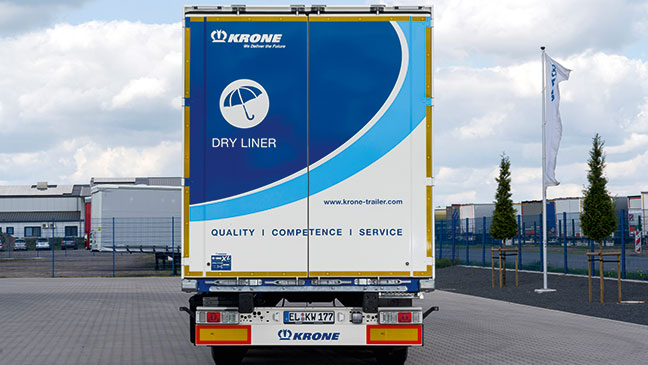

The steel rear door offers optimum closing features and the best possible tightness. Internal turn rod locks ensure a smooth outer surface. The container doors are manufactured in state-of-the-art robot facilities and offer the highest level of quality.

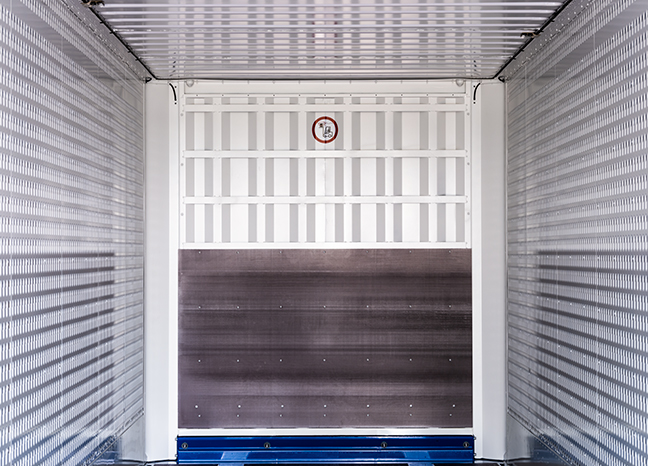

Front wall protection
A chassis that is pulled up at the front and the bolted plywood rebound plate ensure protection and stability.

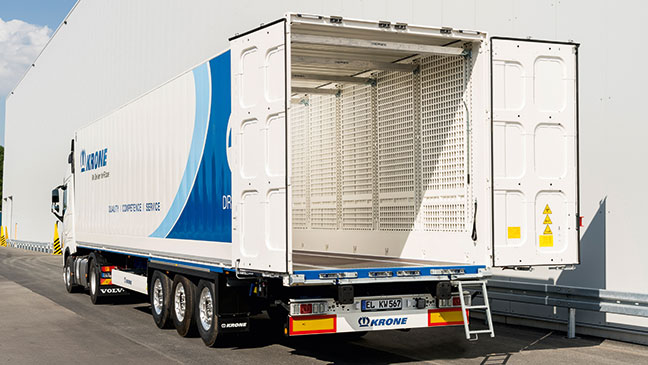

Variable internal equipment
In the steel smooth-wall box variant with clinched steel cassettes, the Dry Liner is equipped with keyhole plates as standard. This interior equipment can also be combined with other load securing elements, e.g. double-deck guide rails and/or rod lashing rails.

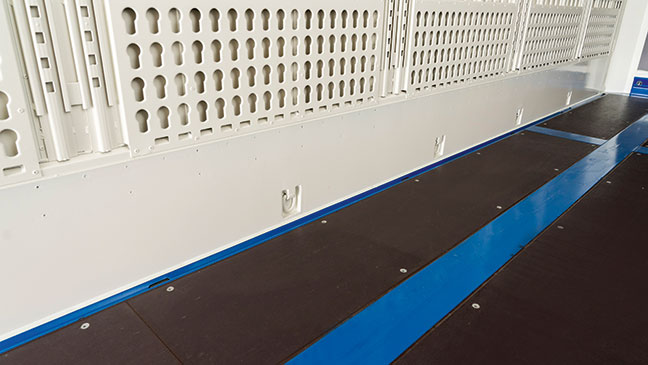

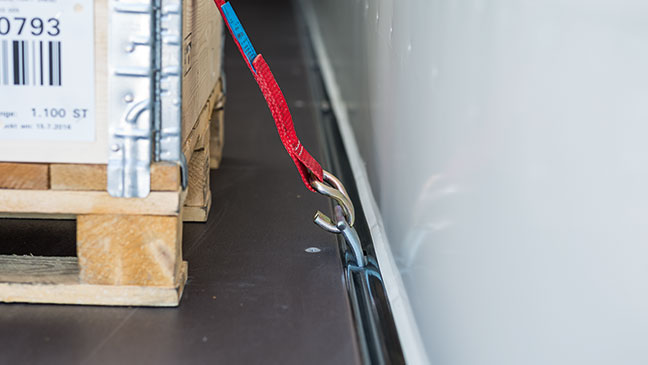

Retractable strapping rings
13 pairs of lashing rings are available as an additional possible means of securing the load. These are evenly spaced and recessed in the outer frame.

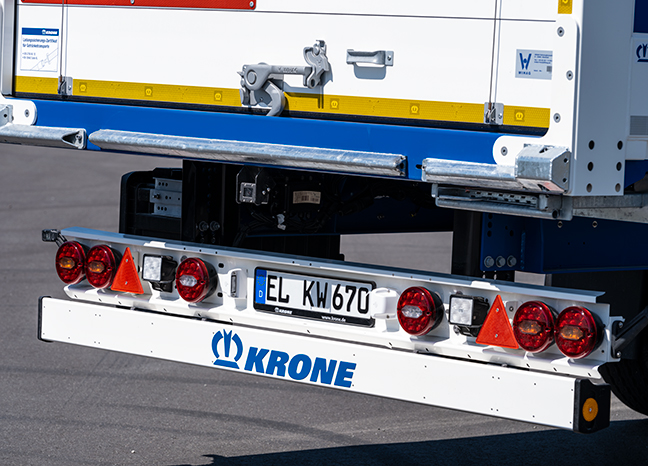

Protected lighting bracket
Underrun protection and lighting brackets are mounted in a protected position and can be replaced separately. Robust ram protection elements protect the rear when docking.

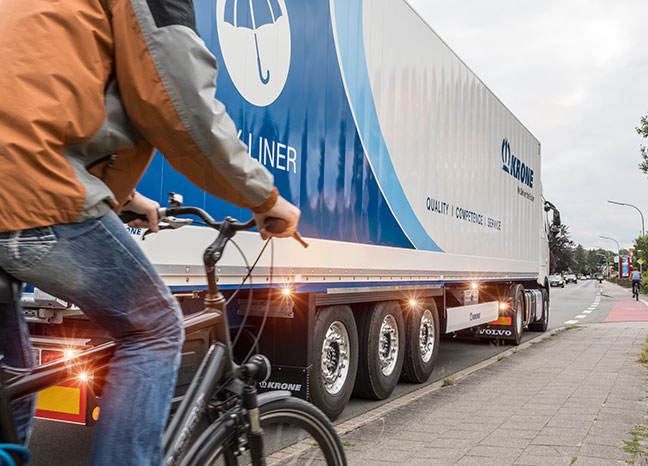

Flashing side position lamps
Flashing side position lamps are available to prevent accidents when turning. It becomes much easier for pedestrians and cyclists to see when the HGV wants to make a turn.

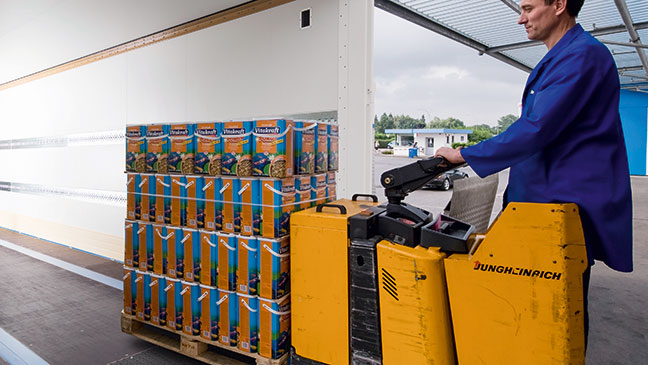

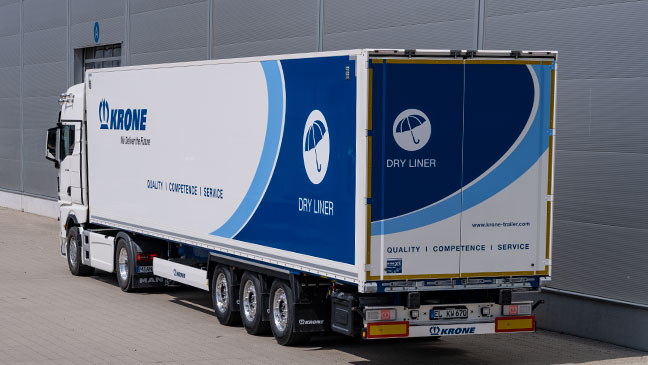

Dry Liner LI (slightly insulated)

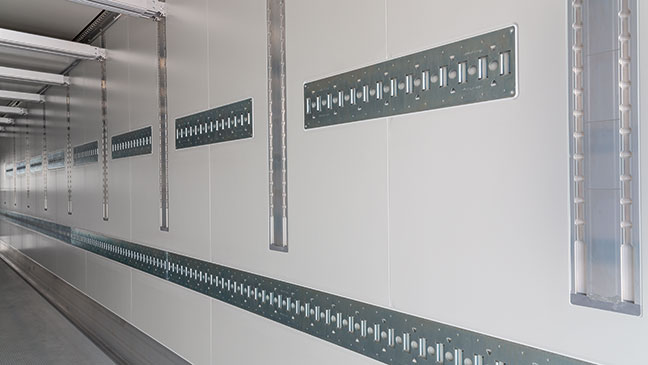

Using the Duoplex steel side wall panel, the dry freight logistics world takes on a new dimension. Recessed double-deck guide rails and lashing rails (optional) enable high levels of transport efficiency and offer the best possible load securing./
Using the Duoplex steel side wall panel, the dry freight logistics world takes on a new dimension. Recessed double-deck guide rails and lashing rails (optional) enable high levels of transport efficiency and offer the best possible load securing./

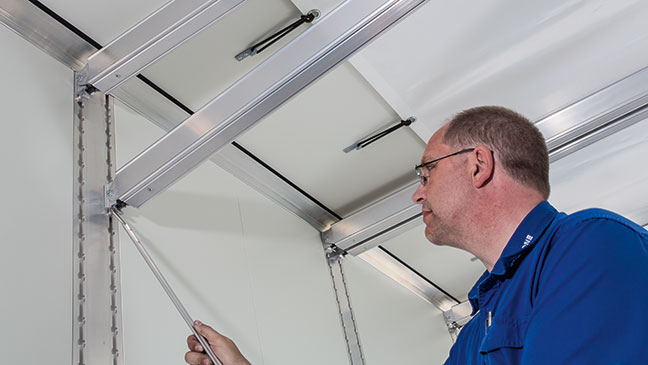

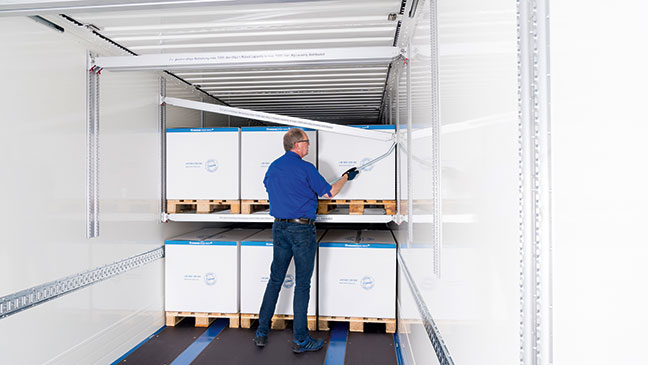

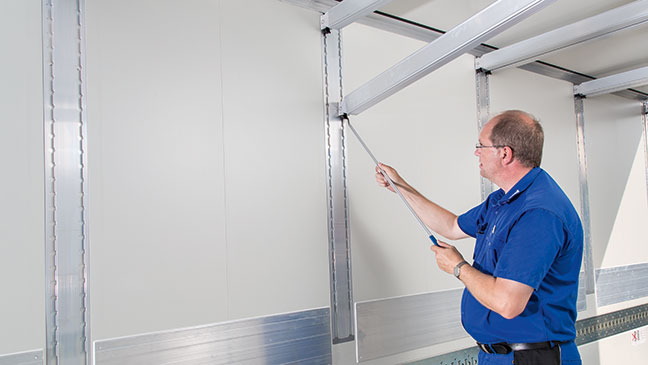

The double-deck loading beams are easy to operate using the control bar. Markings on the guide rails make it easier to adjust the height.
The double-deck loading beams are easy to operate using the control bar. Markings on the guide rails make it easier to adjust the height.

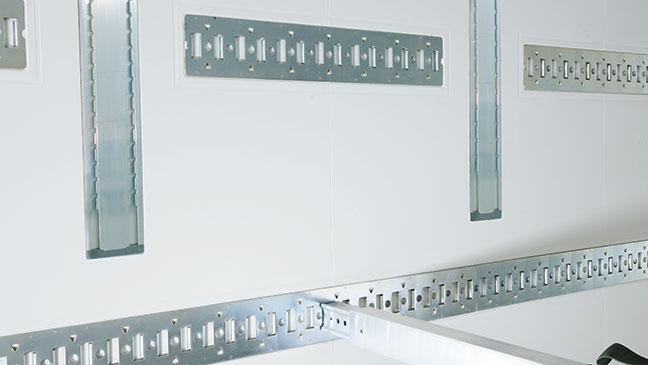

State-of-the-art production technology makes it all possible: Double-deck guide rails with split and end-to-end lashing rails, flush-mounted in the side walls, can be combined.
State-of-the-art production technology makes it all possible: Double-deck guide rails with split and end-to-end lashing rails, flush-mounted in the side walls, can be combined.

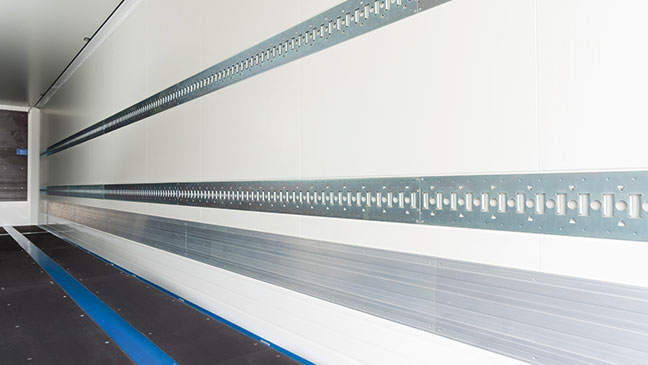

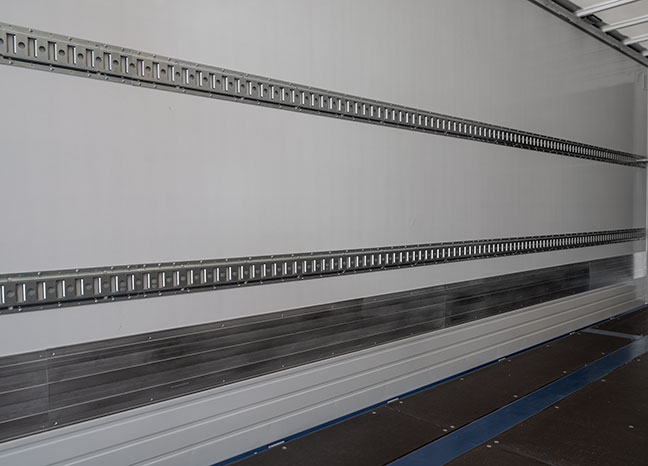

The flush-mounted lashing rails are available in selectable heights and extend along the entire length of the vehicle.

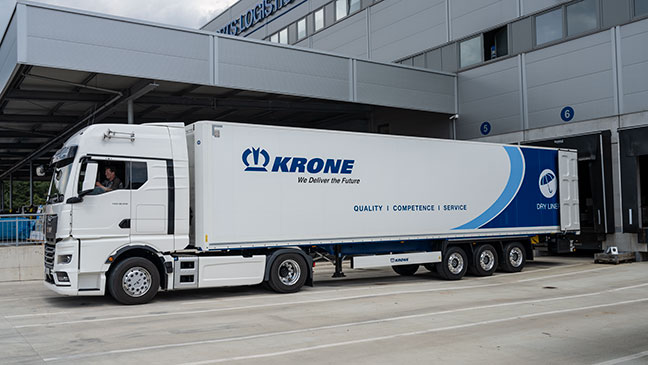

Dry Liner STP (plywood side walls)

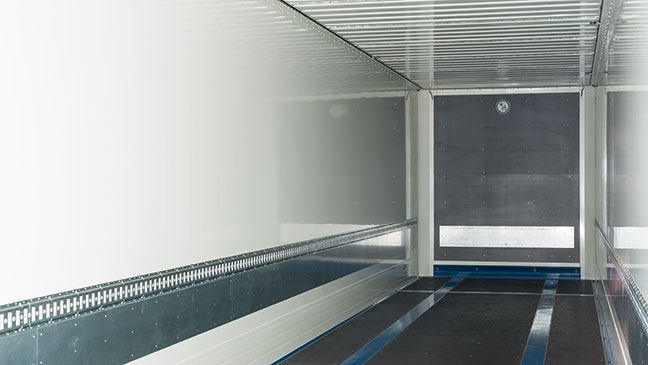

The Dry Liner with plywood side walls provides you with completely smooth wall surfaces on the inside of the vehicle. Additional fittings, such as additional scouring strips or strapping rails are mounted on its surface.
The Dry Liner with plywood side walls provides you with completely smooth wall surfaces on the inside of the vehicle. Additional fittings, such as additional scouring strips or strapping rails are mounted on its surface.
The Dry Liner with plywood side walls provides you with completely smooth wall surfaces on the inside of the vehicle. Additional fittings, such as additional scouring strips or strapping rails are mounted on its surface.

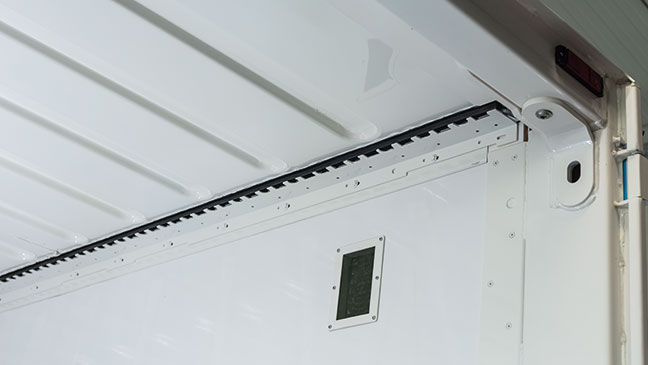

Venting slots are recessed into the side walls. They help prevent the formation of condensation.
Double-deck guide rails can also be put on plywood side walls.

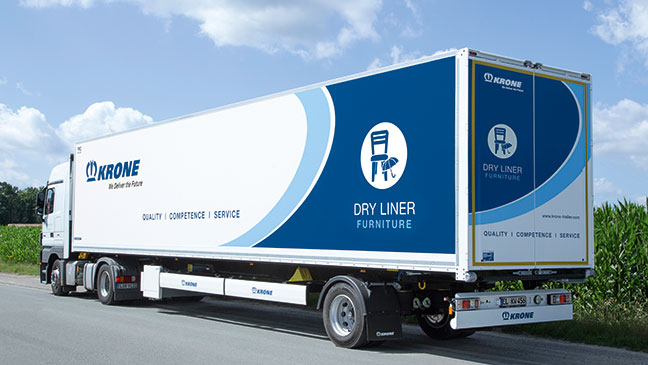

Dry Liner Furniture
Designed for the very purpose, is the Dry Liner Furniture. Its command steering person of action it more manoeuvrable in inner-city traffic than many solo HGVs. Practical features, such as felt panelling and smooth floor surfaces , ensure the safe transportation of high quality furniture. Optional strapping rail versions as well as strapping Strapping rings set into the floor ensure that you can properly secure your load in any position desired.
Designed for the very purpose, is the Dry Liner Furniture. Its command steering person of action it more manoeuvrable in inner-city traffic than many solo HGVs. Practical features, such as felt panelling and smooth floor surfaces , ensure the safe transportation of high quality furniture. Optional strapping rail versions as well as strapping Strapping rings set into the floor ensure that you can properly secure your load in any position desired.
Designed for the very purpose, is the Dry Liner Furniture. Its command steering person of action it more manoeuvrable in inner-city traffic than many solo HGVs. Practical features, such as felt panelling and smooth floor surfaces , ensure the safe transportation of high quality furniture. Optional strapping rail versions as well as strapping Strapping rings set into the floor ensure that you can properly secure your load in any position desired.
Designed for the very purpose, is the Dry Liner Furniture. Its command steering person of action it more manoeuvrable in inner-city traffic than many solo HGVs. Practical features, such as felt panelling and smooth floor surfaces , ensure the safe transportation of high quality furniture. Optional strapping rail versions as well as strapping Strapping rings set into the floor ensure that you can properly secure your load in any position desired.
Designed for the very purpose, is the Dry Liner Furniture. Its command steering person of action it more manoeuvrable in inner-city traffic than many solo HGVs. Practical features, such as felt panelling and smooth floor surfaces , ensure the safe transportation of high quality furniture. Optional strapping rail versions as well as strapping Strapping rings set into the floor ensure that you can properly secure your load in any position desired.

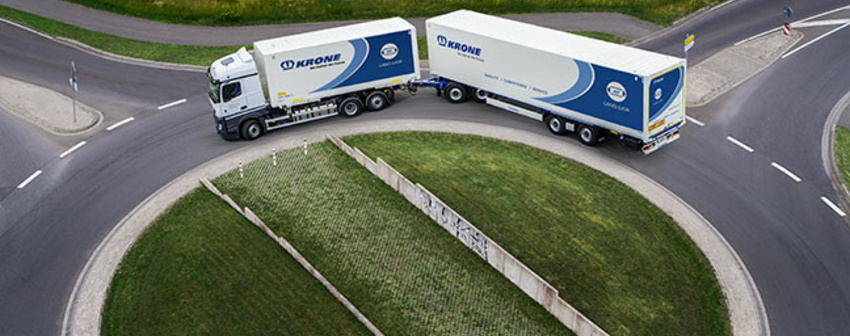

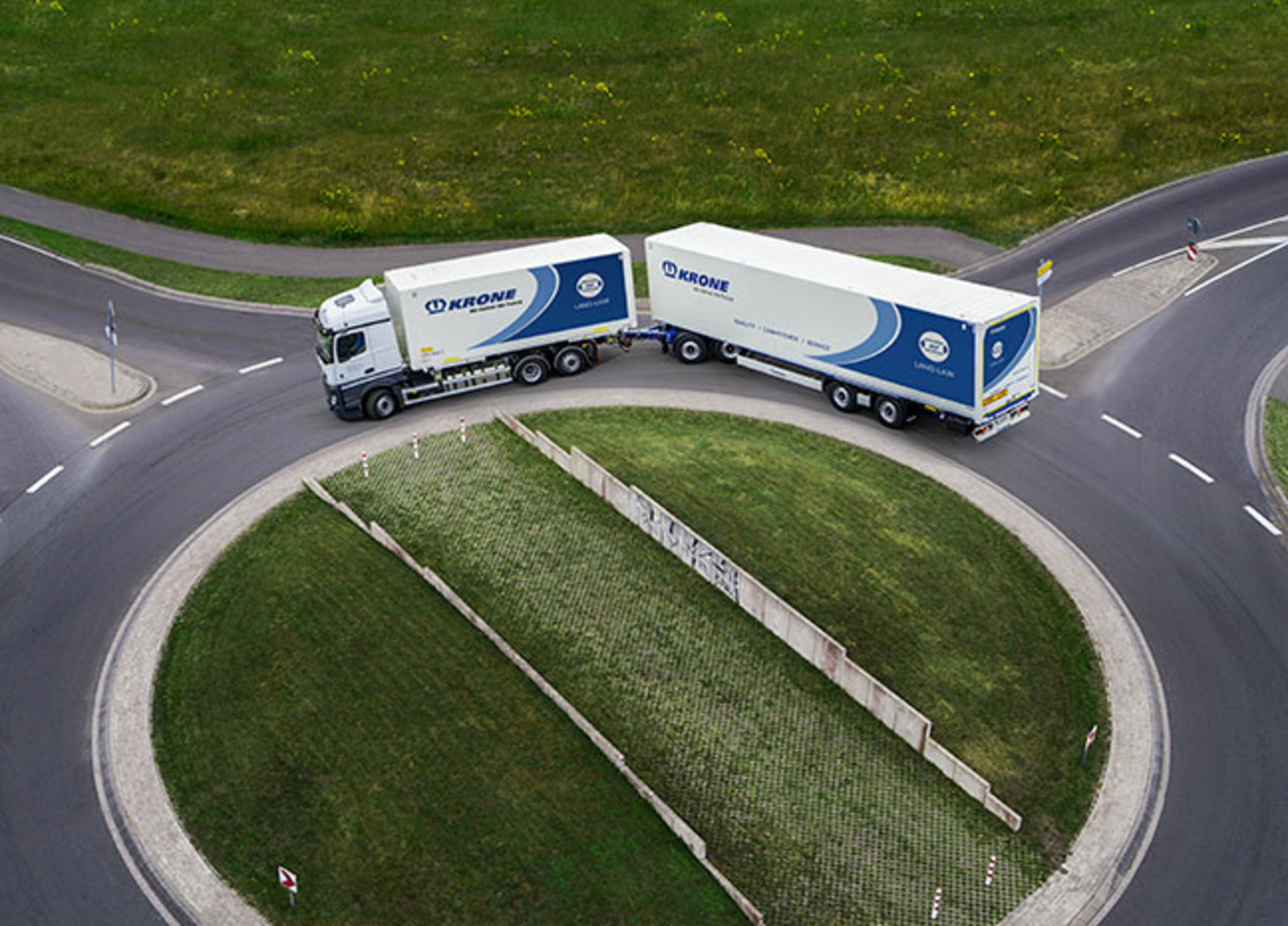

Long HGV deployment
The two-axle Dry Liner, with its wheelbase and self-steering axle, offers the ideal solution for use in the long HGV type 3.
Optional equipment dry freight box body

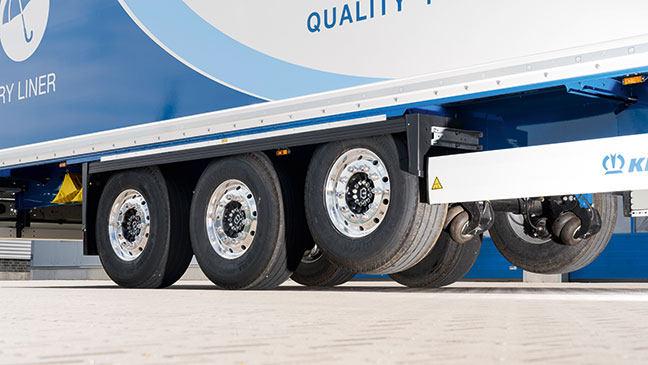

Lift axles automatically respond load-dependently. This allows you to reduce your tyre wear and save fuel.

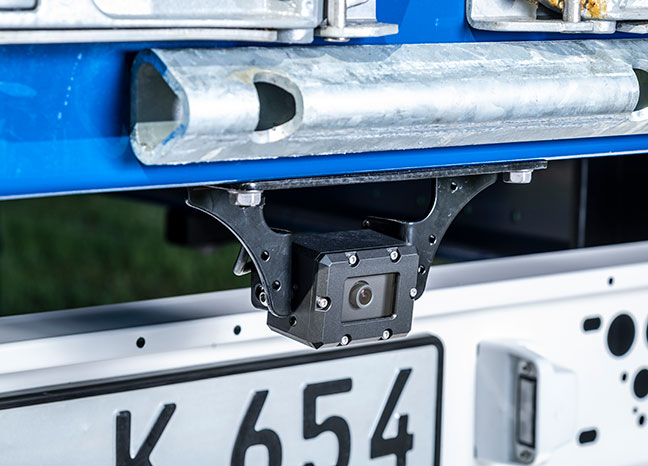

An reversing camera ensures increased safety when manoeuvring. Krone provides camera systems from various renowned manufacturers.
An reversing camera ensures increased safety when manoeuvring. Krone provides camera systems from various renowned manufacturers.

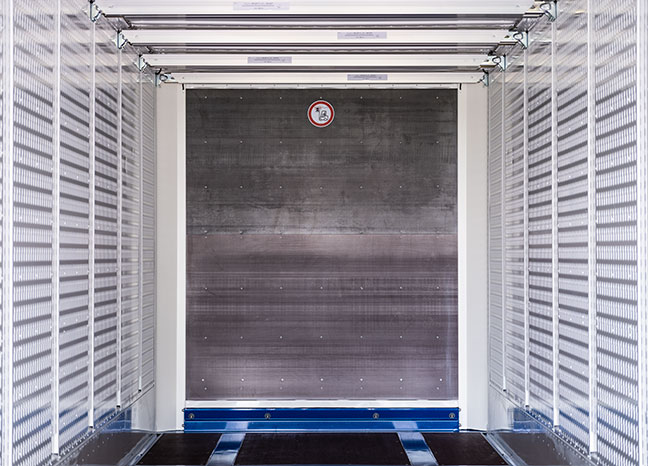

The Dry Liner front wall is lined from the inside with screen printing plates over the entire height.

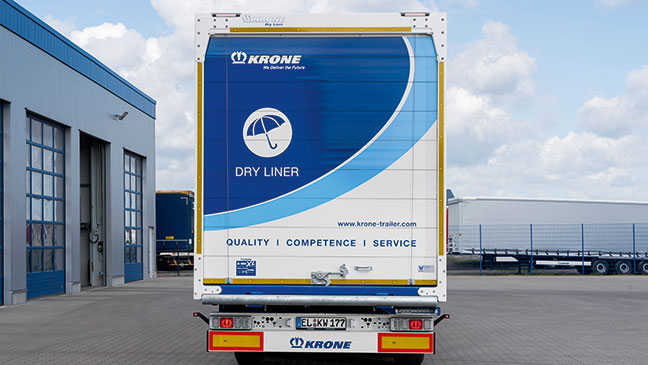

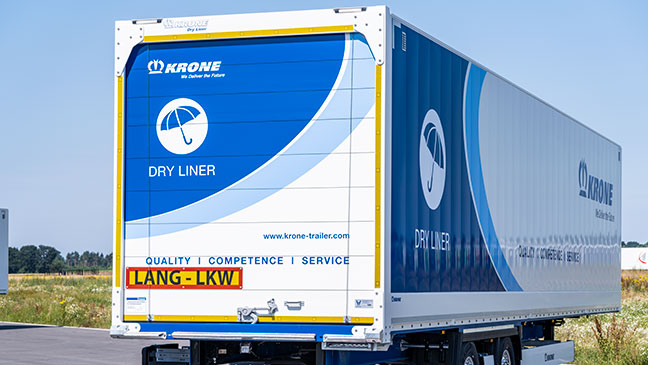

For fast loading cycles, we recommend fitting rail-compatible roller shutter doors, as they can be opened from the ramp.
For fast loading cycles, we recommend fitting rail-compatible roller shutter doors, as they can be opened from the ramp.

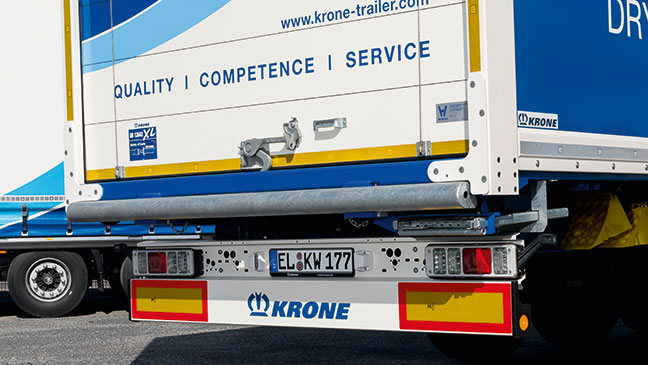

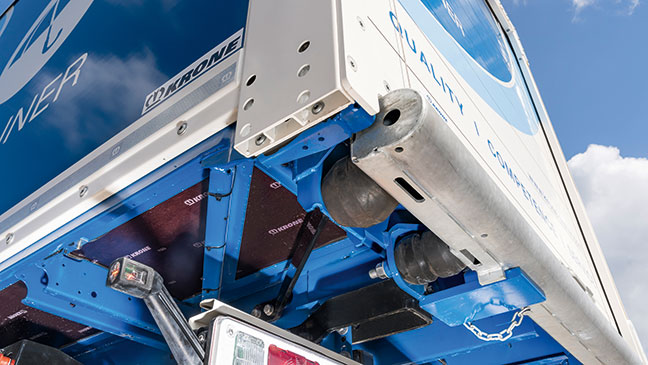

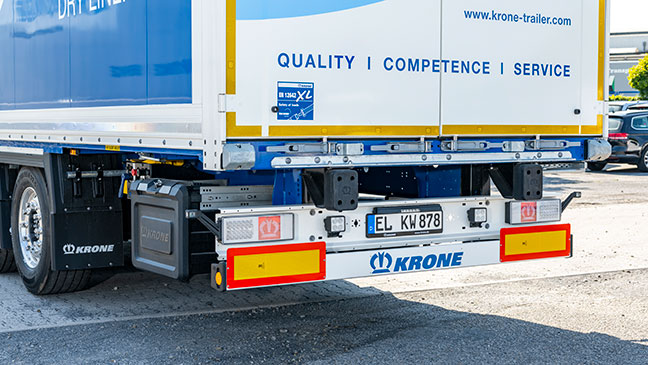

Handling rough jobs: the compression buffer. Extremely robust steel ram protection at the rear with shock-absorbing rubber spring blocks to dampen docking forces.
Handling rough jobs: the compression buffer. Extremely robust steel ram protection at the rear with shock-absorbing rubber spring blocks to dampen docking forces.
You can also purchase the Dry Liner with a stable steel ram protection system and two solid rubber rear buffers in the area of the main beam as an additional variant. The turn rod locks can be optionally equipped with a lock protection.

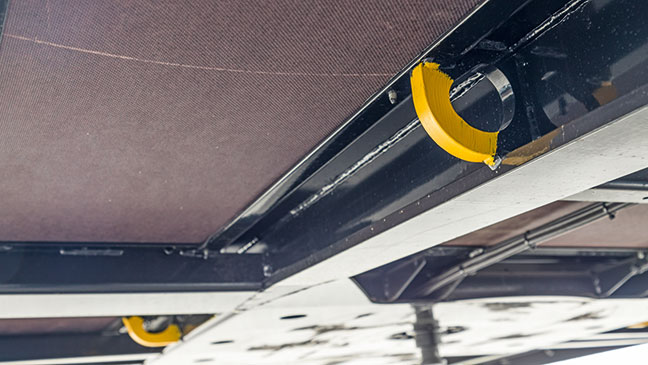

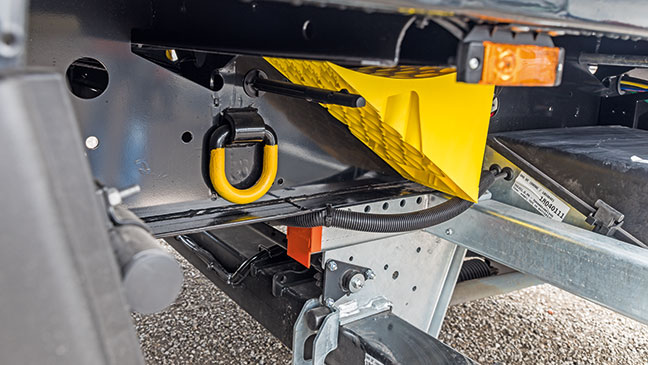

S Sturdy ferry rings secure the Dry Liner in ferry traffic. Strapping points are welded in the flat neck area.
S Sturdy ferry rings secure the Dry Liner in ferry traffic. Strapping points are welded in the flat neck area.

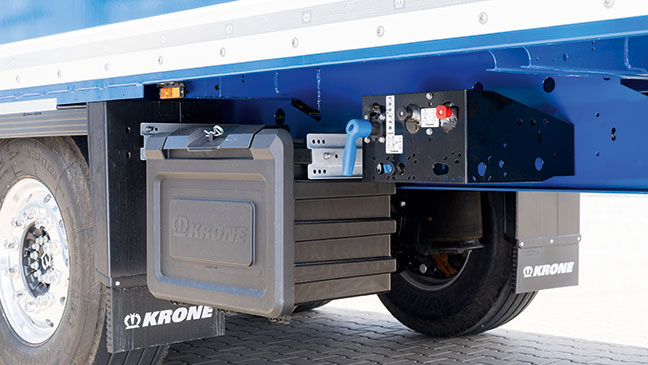

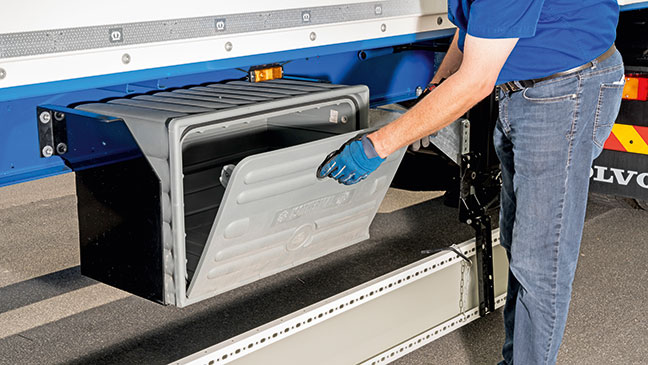

From tool boxes and insulated food boxes to pallet boxes, stow boxes are available in different sizes.
From tool boxes and insulated food boxes to pallet boxes, stow boxes are available in different sizes.

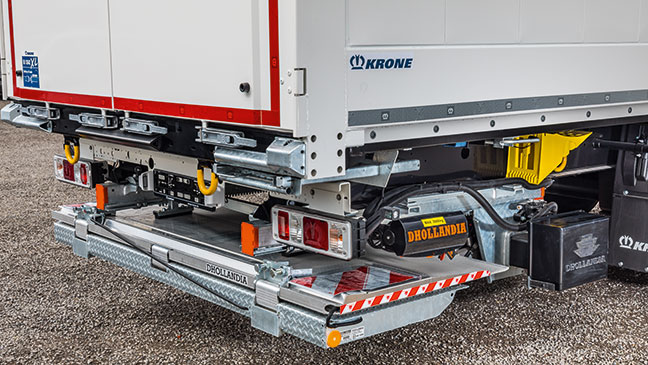

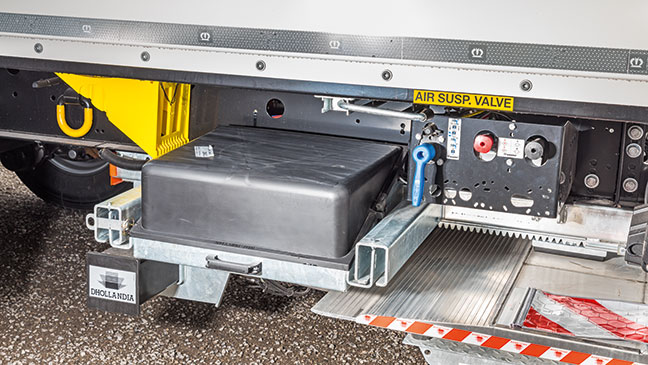

The range of products includes upright or foldable tail lifts from various manufacturers. Battery boxes are installed in a protected and easily accessible place.
The range of products includes upright or foldable tail lifts from various manufacturers. Battery boxes are installed in a protected and easily accessible place.

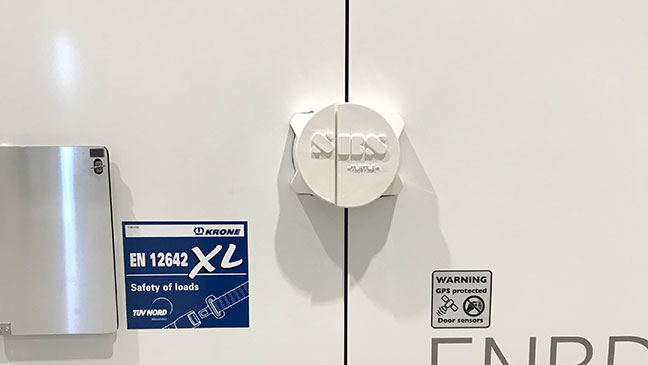

An additional safety lock on the door leaves enables the use of a sturdy U-lock, incl. keys and certificate for the safety lock.
An additional safety lock on the door leaves enables the use of a sturdy U-lock, incl. keys and certificate for the safety lock.

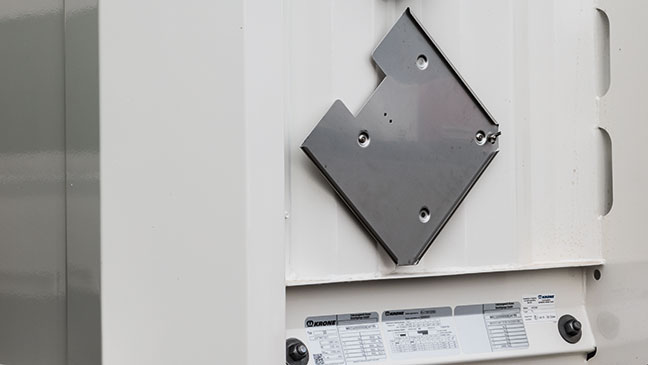

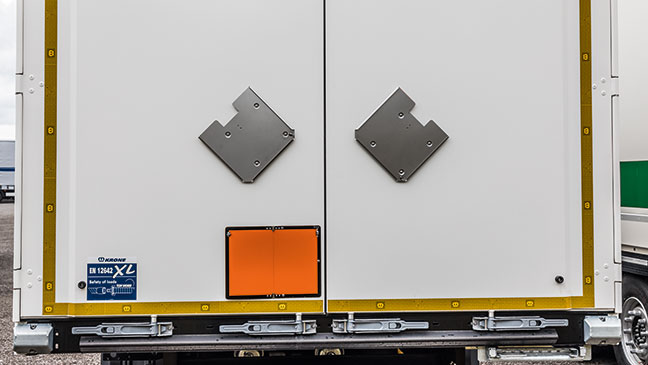

Brackets for hazardous goods can be installed both on the front wall and container doors.
Brackets for hazardous goods can be installed both on the front wall and container doors.
Elevated lateral, double-walled scouring strips protect the walls of the superstructure from damage by the forklift or the load. Strapping rings can be optionally embedded in the scouring strip on the steel smooth-wall box.

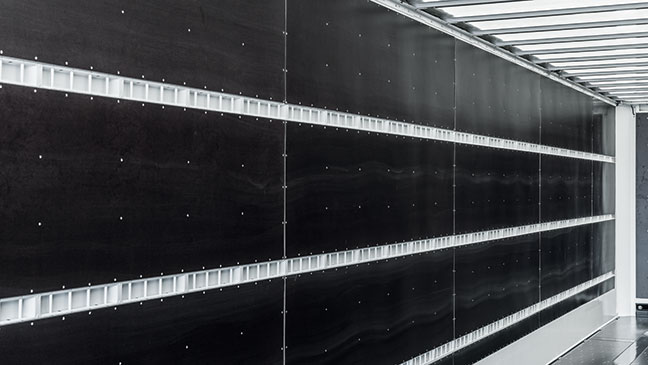

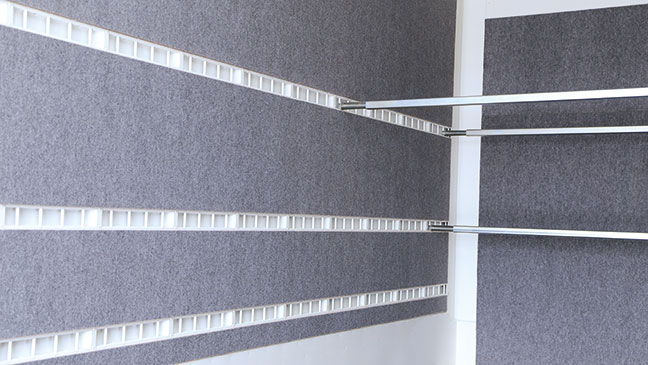

Various types of internal cladding and strapping devices are available as an option: This includes, for example, the felt lining for transporting furniture. Alternatively, you can select a wood panelling.
Various types of internal cladding and strapping devices are available as an option: This includes, for example, the felt lining for transporting furniture. Alternatively, you can select a wood panelling.

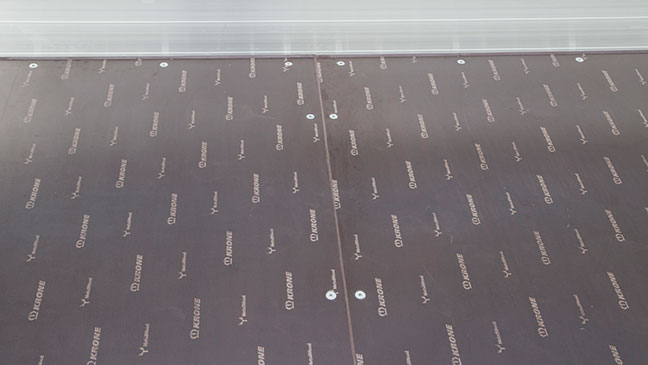

Upon request, the base plates can be installed with the smooth side up. This option is particularly suitable for furniture transport.

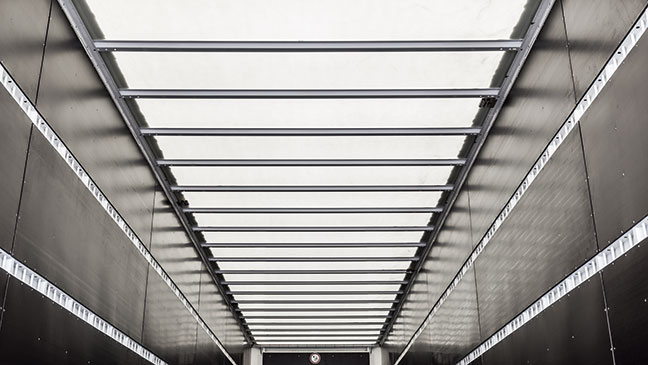

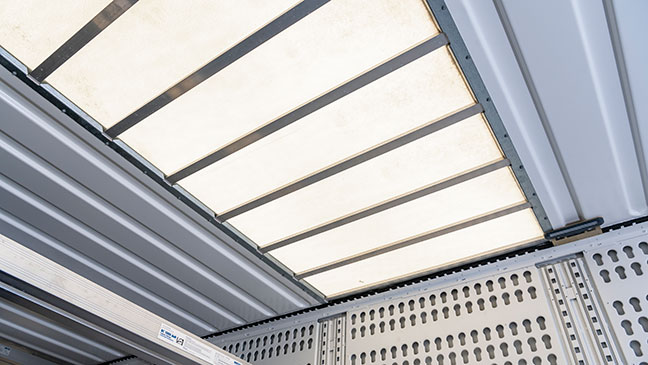

The transparent plastic roof offers better visibility for loading and unloading work. Alternatively, individual light windows can also be mounted.
The transparent plastic roof offers better visibility for loading and unloading work. Alternatively, individual light windows can also be mounted.

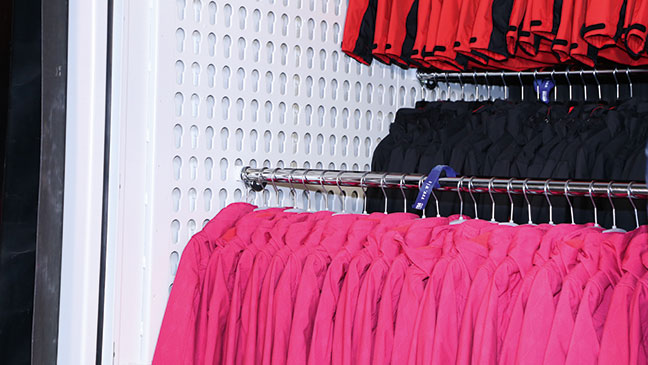

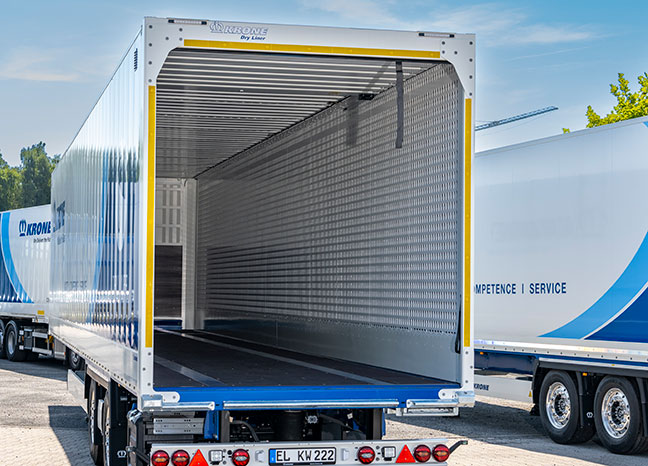

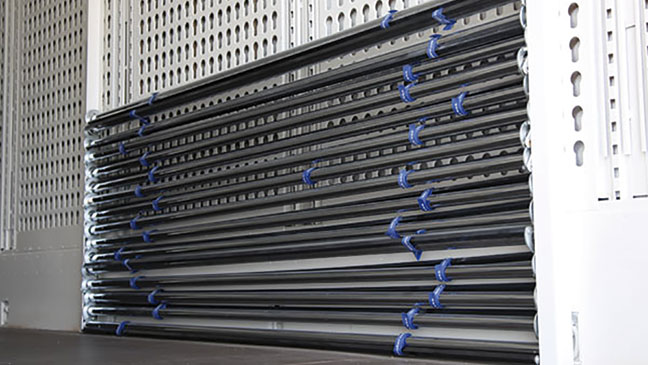

The keyhole plates are predestined for transporting clothing. In addition to clothes rails, they naturally also accommodate locking rods and belts, etc. The depot for clothes rails that are not needed can be positioned as required.
The keyhole plates are predestined for transporting clothing. In addition to clothes rails, they naturally also accommodate locking rods and belts, etc. The depot for clothes rails that are not needed can be positioned as required.
