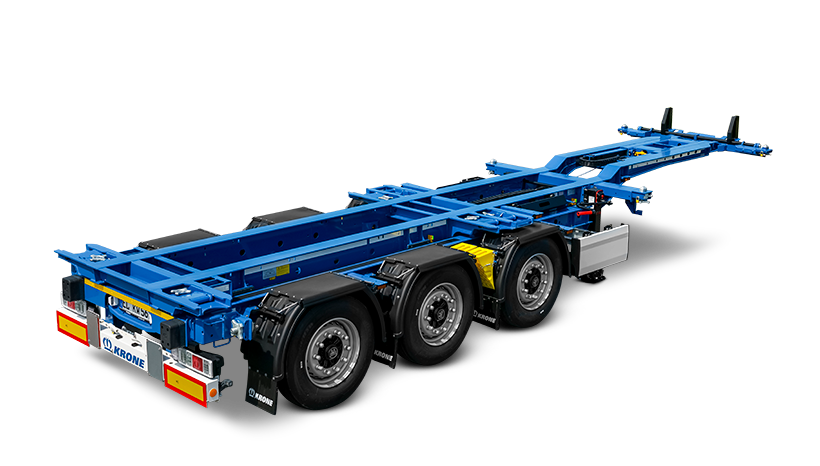

Box Liner SDC 27 eLTU6
You decide on a short or long version
- Loading and unloading of 20' containers flush with the rear
- Optimised fifth-wheel load by transporting 20' containers in the middle
- Optimum load distribution and excellent driving characteristics
- Compliance with legal requirements in cross-border traffic
- Easy handling when sliding the chassis
- The front and rear extension makes it suitable for all common container sizes
- Reduced tyre wear due to balanced load distribution.

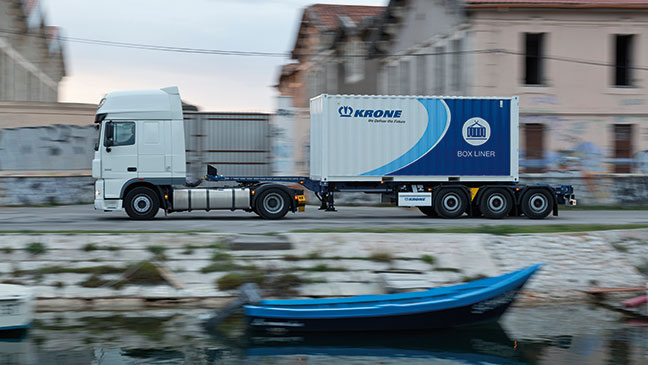

Sturdy, innovative, flexible and yet uniquely easy to use: Using the Box Liner SDC 27 eLTU6, 20-foot containers can be conveniently transported centrally and loaded and unloaded flush with the rear.

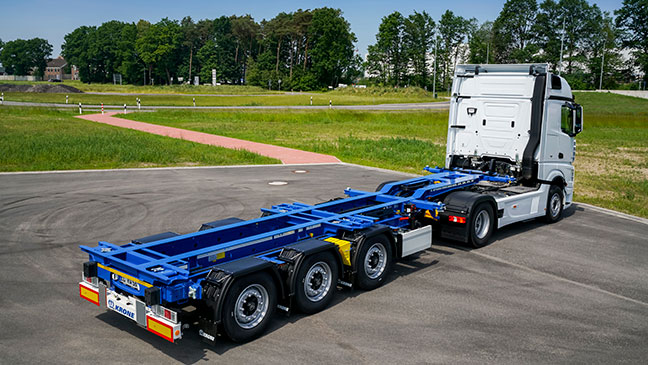

The chassis is extended or retracted via the tractor unit.
Technical data
Type
SDC 27 eLeLTU6
Fifth-wheel load
14000 kg
Axle load
27000 kg
Permissible total weight
41000 kg
Approx. dead weight:
5700 kg
Approx. payload.
35300 kg
Wheelbase
1410 / 1,310 mm
Coupling height
1130 mm
Construction height, front
130 mm
Length of kingpin to rear edge of vehicle (45' short tunnel)
12760 mm
Length of kingpin to rear edge of vehicle (45' long tunnel)
12000 mm

Technical data
Type
SDC 27 eLeLTU6
Fifth-wheel load
14000 kg
Axle load
27000 kg
Permissible total weight
41000 kg
Approx. dead weight:
5700 kg
Approx. payload.
35300 kg
Wheelbase
1410 / 1,310 mm
Coupling height
1130 mm
Construction height, front
130 mm
Length of kingpin to rear edge of vehicle (45' short tunnel)
12760 mm
Length of kingpin to rear edge of vehicle (45' long tunnel)
12000 mm
Always a plus on equipment.
Simply inimitable

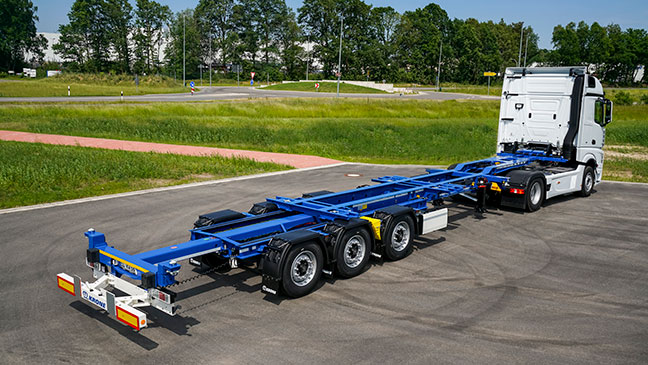

Position 20' flush with rear / 45' container
Using the Box Liner SDC 27 eLTU6, 20-foot containers can be conveniently transported centrally and loaded and unloaded flush with the rear. The chassis is extended or retracted via the tractor unit. 25% percent drive load can be safely achieved, even with heavy 20' containers.

New convenience

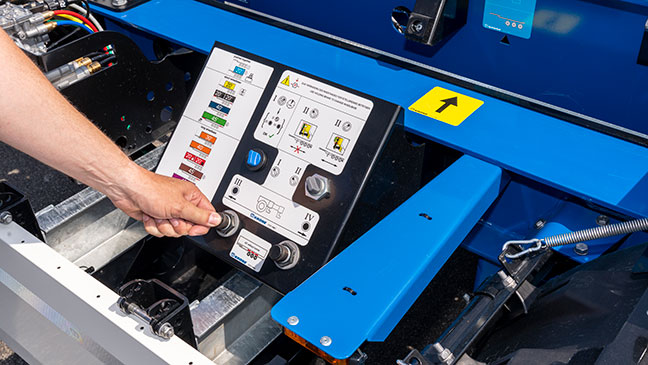

Coloured markings make it easy to adjust the Box Liner to the different container sizes.

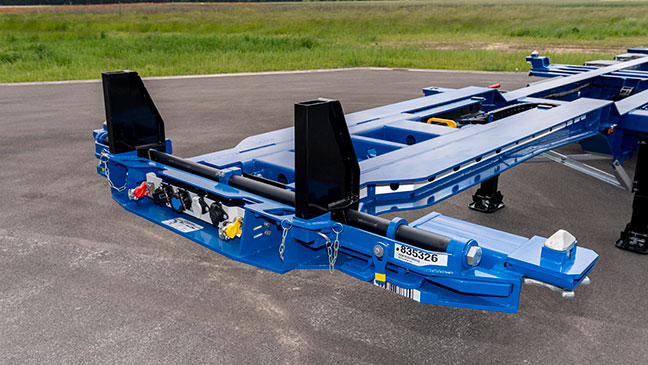

Front beam for front extension
The front extension is manually operated. The container locks can be easily adjusted to the container sizes to be transported.

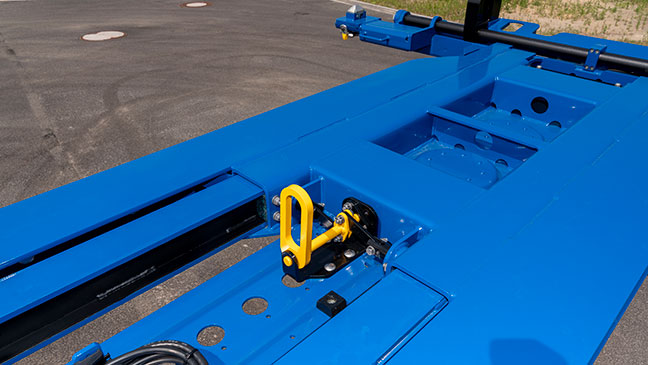

Simple front extension operation
The front extension of the Box Liner eLTU6 is easy to operate using a central locking system.

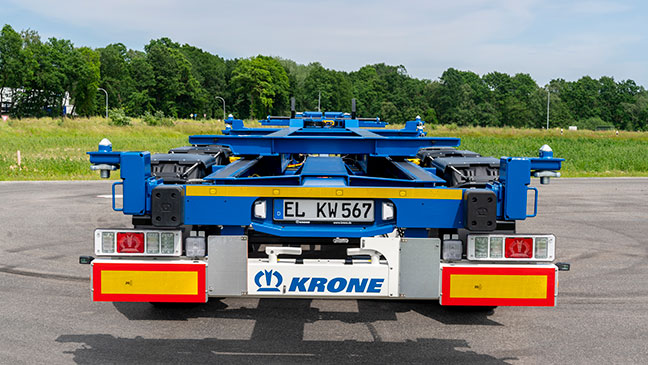

Robust rear design
The rear is equipped with solid rear buffers suitable for ramps.

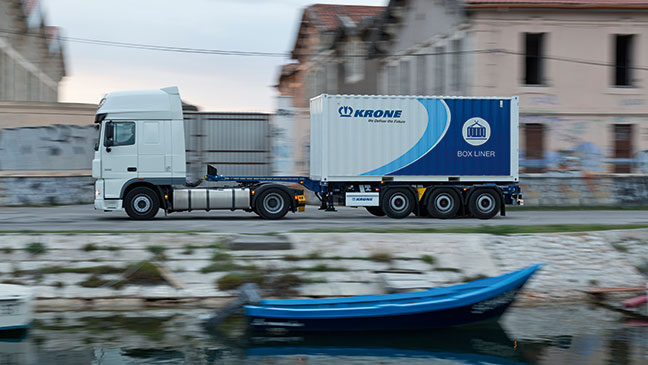

You decide on a short or long version
Using the Box Liner SDC 27 eLTU6, 20' containers can be conveniently transported centrally and loaded and unloaded flush with the rear.
Accessories Box Liner

Accompanying documentation can optionally be transported in a protected manner in a document tube or in a document box (here mounted on the inside of the side collision protection).

Accompanying documentation can optionally be transported in a protected manner in a document tube or in a document box (here mounted on the inside of the side collision protection).

Regardless of whether it is a traction rear or a standard rear, a back-up spotlight can always be installed in a protected manner.

The traction rear and traction+ combination on the SDC 27 eL20 ensures an excellent fifth-wheel load. The 25% drive axle load required in cross-border traffic can be achieved up to a container weight of approx. 28 tonnes (depending on the tractor unit) This combination also ensures that the load distribution of the SDC 27 eLTU70 is well-balanced.

If equipped with a spare wheel holder, the side collision protection can also be supplied in a fold-up version.

Lift axles automatically respond load-dependently. This allows you to reduce your tyre wear and save fuel.

A variety of warning signs can be fitted to the rear of the vehicle.

A genset (optionally from Genmark, Carrier or Thermoking) makes it possible to transport refrigerated containers at controlled temperatures. The genset also features its own fuel tank, which ensures that the cold chain is not interrupted even during road transport.

A genset (optionally from Genmark, Carrier or Thermoking) makes it possible to transport refrigerated containers at controlled temperatures. The genset also features its own fuel tank, which ensures that the cold chain is not interrupted even during road transport.
